100M 18GB HDBaseT HDMI 2.0 Extender Kit w USB2, ARC return via HDMI, 4K2K@60 444

• Supports 18Gbps video bandwidth
• Up to 70 meters for 4K2K signals over a single Cat5e/6 cable
• Up to 100 meters for 1080P signal over a single Cat5e/6 cable
• Supports ARC (Audio Return Channel) function
• Supports USB KVM function
• HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• With bi-directional IR, RS-232 and CEC pass-through
• HDR, HDR10+, Dolby Vision and HLG function supported
• Supports PoC (Power over Cable) function

SKU: ND-100M-HUAE-KT

Description

Description

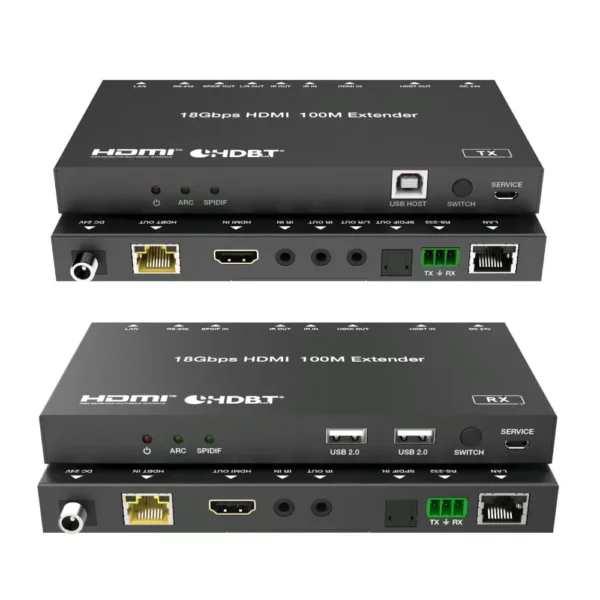

This HDMI Extender transmits HDMI signals, bi-directional IR, USB, LAN, and RS-232 control signals up to 100 meters over a single CAT6a/7 cable. It supports resolutions up to 4K@60Hz 4:4:4. The transmitter features ARC support and local audio extraction. Additionally, the extender includes bi-directional IR pass-through for controlling both the source and display.

ND-100M-HUAE-KT Manual

Package Contents

• 1 ⅹ 18Gbps HDMI over HDBaseT Extender Transmitter
• 1 ⅹ 18Gbps HDMI over HDBaseT Extender Receiver
• 1 ⅹ IR Blaster cable (1.5 meters)
• 1 ⅹ 20~60KHz IR Receiver cable (1.5 meters)
• 2 ⅹ Mounting Ears
• 2 ⅹ 3-pin Phoenix connector
• 1 ⅹ 24V/1A Locking Power Adaptor
• 1 ⅹ User Manual
