This 18Gbps HDMI Extender can extend high definition video/audio signal, RS-232, bi-directional IR up to 150 meters via a single CAT cable. It supports resolutions up to 4K2K@60Hz 4:4:4 18Gbps and HDCP 2.2. HDMI loop port is available on the transmitter and the receiver features a de-embedded L/R audio output. The PoC function means only one power adapter is required and can be placed at either end. Additionally, the extender also includes two-way IR pass-through which allows for source and display control.
4K2K 50/60Hz 4:4:4
4K2K 50/60Hz 4:2:2
4K2K 50/60Hz 4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All HDMI 3D TV formats
All PC resolutions including 1920 x 1200
Color Space
RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
10-bit, 12-bit
HDMI Audio Formats (Pass-through)
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby
TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS
HD Master, DTS HD-HRA, DTS-X
Audio LR Formats
PCM 2.0
ESD Protection
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

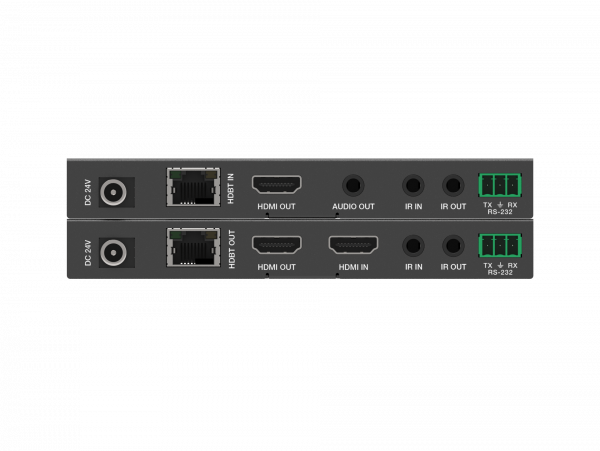

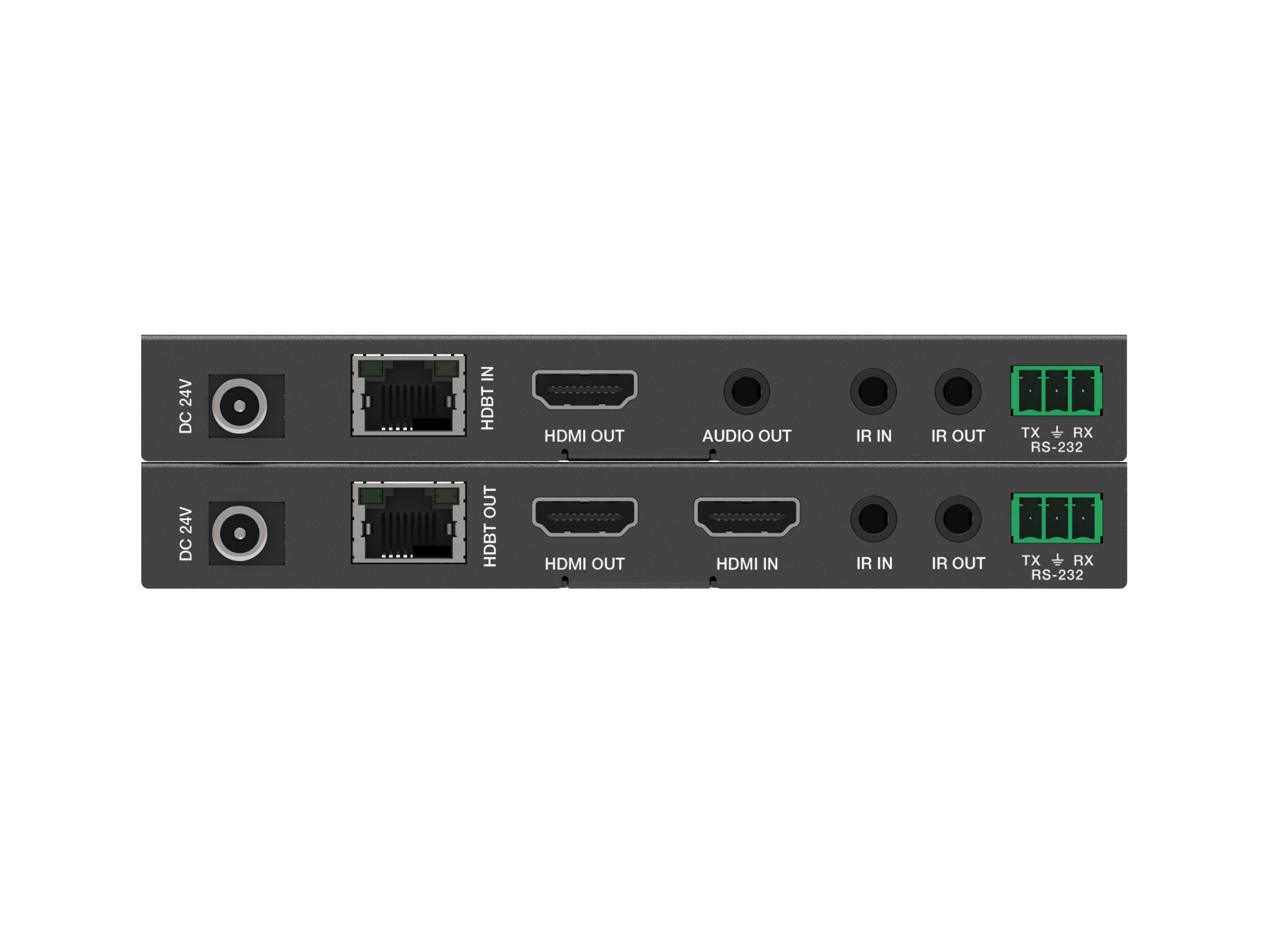

Connections
Transmitter
Inputs: 1x HDMI Type A [19-pin female]
Outputs: 1x HDMI Type A [19-pin female]
1x HDBT OUT [RJ45, 8-pin female]
Control: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port]
Receiver
Inputs: 1x HDBT IN [RJ45, 8-pin female]
Outputs: 1x HDMI Type A [19-pin female]
1x AUDIO OUT [3.5mm Stereo Mini-jack]
Control: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
140mm [W] x 65mm [D] x 18mm [H]
Weight
450g
Power Supply
Input: AC100 – 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
150m HDBaseT 18Gb HDMI 2.0 Extender Kit
$308.00 ex GST
This 18Gbps HDMI Extender can extend high definition video/audio signal, RS-232, bi-directional IR up to 150 meters via a single CAT cable. It supports resolutions up to 4K2K@60Hz 4:4:4 18Gbps and HDCP 2.2. HDMI loop port is available on the transmitter and the receiver features a de-embedded L/R audio output. The PoC function means only one power adapter is required and can be placed at either end. Additionally, the extender also includes two-way IR pass-through which allows for source and display control.
In stock
Description
Network Devices – ND-150M-HDBT-X4C-KT
• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
• Video resolutions up to 4K2K@50/60Hz (YUV444)
• 10bits HDR (High Dynamic Range) pass through
• Supports HDMI High Bit Rate(HBR) audio pass through
• Supports CEC bypass
• Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
4K2K up to 120m, 1080p up to 150m
Package includes TX and RX.
4K2K 50/60Hz 4:2:2
4K2K 50/60Hz 4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All HDMI 3D TV formats
All PC resolutions including 1920 x 1200
TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS
HD Master, DTS HD-HRA, DTS-X
Outputs: 1x HDMI Type A [19-pin female]
1x HDBT OUT [RJ45, 8-pin female]
Control: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port]
Outputs: 1x HDMI Type A [19-pin female]
1x AUDIO OUT [3.5mm Stereo Mini-jack]
Control: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port]
