• Supports up to 4K@60Hz 4:4:4 resolutions (HDMI 2.0b)
• Seamless switching between input channels with multiple image combinations on a single UHD monitor
• Offers 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
• Control 4 computers with one keyboard, mouse, and monitor
• Built-in 3-port USB 3.1 Gen 1 hub with 5Gbps data transfer for sharing USB peripherals
• Supports multimedia, wireless keyboards, and mouse
• Audio de-embedding via analog and optical audio ports
• Volume control and independent audio selection
• OSD navigation for advanced settings
• EDID management
• Control via front panel, IR remote, keyboard/mouse hotkeys, OSD, controller software, and RS-232

SKU: ND-MX41KVM

Description

Description

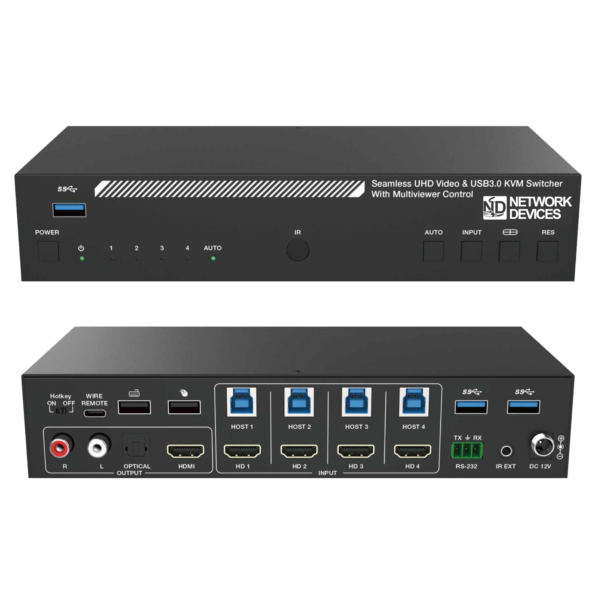

This 4K60 4×1 Seamless UHD Video & USB 3.0 KVM Switcher is designed to support high-resolution output (4K@60) from multiple sources on a single screen. It can combine up to four video signals onto one UHD or HD display, allowing users to manage each input, create combinations of the four inputs, and adjust the position of any input.

This product offers 8 display modes, enabling users to switch between 4-channel HD input signals. It supports both single-screen and multiview display on a single screen. The device is compatible with a full range of input video resolutions up to 4K@60 (RB) and supports RCA/Optical audio de-embedding for integration with external audio distribution systems.

Additionally, the switcher transmits USB 3.0 signals up to 5Gbps for KVM functionality. It supports direct switching via front panel buttons, IR remote, or hotkey commands through a keyboard/mouse connected to a designated USB port. The switcher is compatible with various operating systems, including Windows, macOS, and Linux, requiring no drivers—just plug and play.

Control options include front panel buttons, IR remote, keyboard/mouse hotkeys, OSD menu navigation, controller software, and RS-232 commands.

Package Contents
• 1 x 4K60 4×1 Seamless UHD Video & USB 3.0 KVM Switcher
• 1 x IR Remote
• 1 x 3pin-3.81mm Phoenix Connector (male)
• 1 x Fixed Frequency 38KHz IR Receiver Cable (1.5 meters)
• 2 x Mounting Ear
• 4 x Machine Screw (KM3*4)
• 4 x USB Cable (USB 3.0 AM to BM, 1.8 meters)
• 1 x 12V/2.5A Locking Power Supply
• 1 x User Manual
