This high-performance 18Gbps HDBaseT Matrix Switcher can switch any of these Eight HDMI 2.0 sources to four HDMI Outputs which are mirrored to 150m HDBaseT Extender Outputs.
Each input and output supports up to 4K60 444 resolution and HDCP 2.2. The outputs can be individually scaled for 1080p. Input signal sense detected via signal timing available via control protocol. Auto-switching can be achieved even when inputs are HDBaseT extended. CEC control via control protocol for inputs and outputs. De-embedded audio as analog L/R and coaxial is available for all outputs. Advanced EDID management is supported.
This high-performance 18Gbps HDBaseT Matrix Switcher can switch any of its eight HDMI 2.0 sources to eight HDMI Outputs which are mirrored to 150m HDBaseT Extender Outputs.
Each input and output supports up to 4K60 444 resolution and HDCP 2.2.
The outputs can be individually scaled for 1080p.
Input signal sense detected via signal timing available via control protocol. Auto-switching can be achieved even when inputs are HDBaseT extended.
CEC control via control protocol for inputs and outputs.
De-embedded audio as analog L/R and coaxial is available for all outputs.
Advanced EDID management is supported.
This switcher can be controlled from the front panel, RS-232, IR remote, or TCP/IP.
Features
☆ HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆ Eight 18G HDMI 2.0 video inputs support up to 4K60 444 resolution
☆ Eight 150M HDBaseT outputs mirrored to HDMI 2.0 video outputs which support up to 4K60 444 resolution
☆ Eight outputs can be individually scaled for 4K→1080p
☆ De-embedded audio to balanced analog L/R and Coaxial ports output
☆ Built-in Web GUI for TCP/IP control
☆ Advanced EDID management supported
☆ Four methods of control: Front panel, RS-232, IR remote and TCP/IP

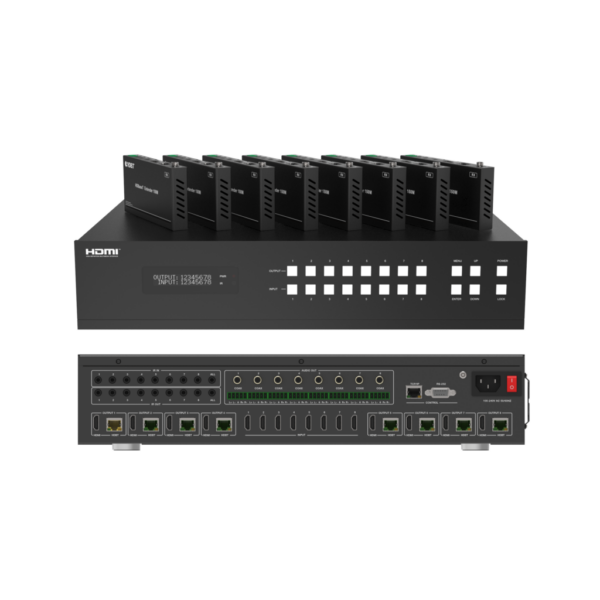

8 x 8 150m 18Gbps HDBaseT Matrix Switcher
This high-performance 18Gbps HDBaseT Matrix Switcher can switch any of these Eight HDMI 2.0 sources to four HDMI Outputs which are mirrored to 150m HDBaseT Extender Outputs.
Each input and output supports up to 4K60 444 resolution and HDCP 2.2. The outputs can be individually scaled for 1080p. Input signal sense detected via signal timing available via control protocol. Auto-switching can be achieved even when inputs are HDBaseT extended. CEC control via control protocol for inputs and outputs. De-embedded audio as analog L/R and coaxial is available for all outputs. Advanced EDID management is supported.
Description
This high-performance 18Gbps HDBaseT Matrix Switcher can switch any of its eight HDMI 2.0 sources to eight HDMI Outputs which are mirrored to 150m HDBaseT Extender Outputs.
Each input and output supports up to 4K60 444 resolution and HDCP 2.2.
The outputs can be individually scaled for 1080p.
Input signal sense detected via signal timing available via control protocol. Auto-switching can be achieved even when inputs are HDBaseT extended.
CEC control via control protocol for inputs and outputs.
De-embedded audio as analog L/R and coaxial is available for all outputs.
Advanced EDID management is supported.
This switcher can be controlled from the front panel, RS-232, IR remote, or TCP/IP.
Features
☆ HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆ Eight 18G HDMI 2.0 video inputs support up to 4K60 444 resolution
☆ Eight 150M HDBaseT outputs mirrored to HDMI 2.0 video outputs which support up to 4K60 444 resolution
☆ Eight outputs can be individually scaled for 4K→1080p
☆ De-embedded audio to balanced analog L/R and Coaxial ports output
☆ Built-in Web GUI for TCP/IP control
☆ Advanced EDID management supported
☆ Four methods of control: Front panel, RS-232, IR remote and TCP/IP
