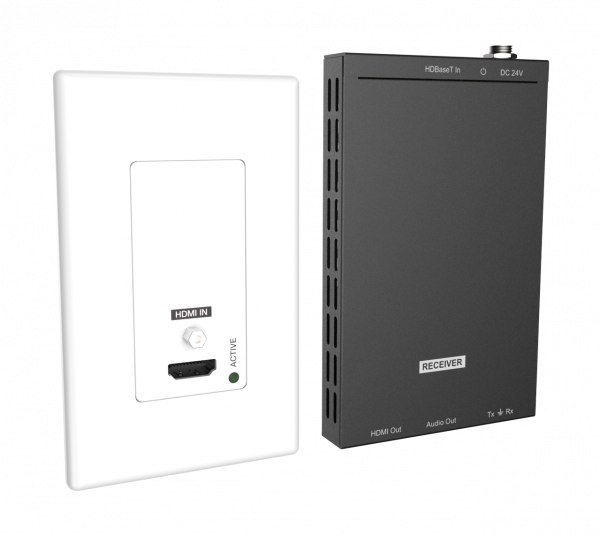

Description
The HDBaseT Wall-plate Transmitter can transmit up to 4K2K@60 (4:4:4) video over a single CAT6/6a/7 cable up to 130ft/40m or 1080p up to 230ft/70m. It supports Power over Cable (PoC) functionality that allows for greater flexibility in installations. It also supports two-way IR and RS-232.
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 1.4 and HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | up to 4K2K@50/60Hz(YUV4:4:4)
4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+,
Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats | LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV
(Contact discharge) |
| Connections | |
| Transmitter | Inputs: 1x HDMI Type A [19-pin female]

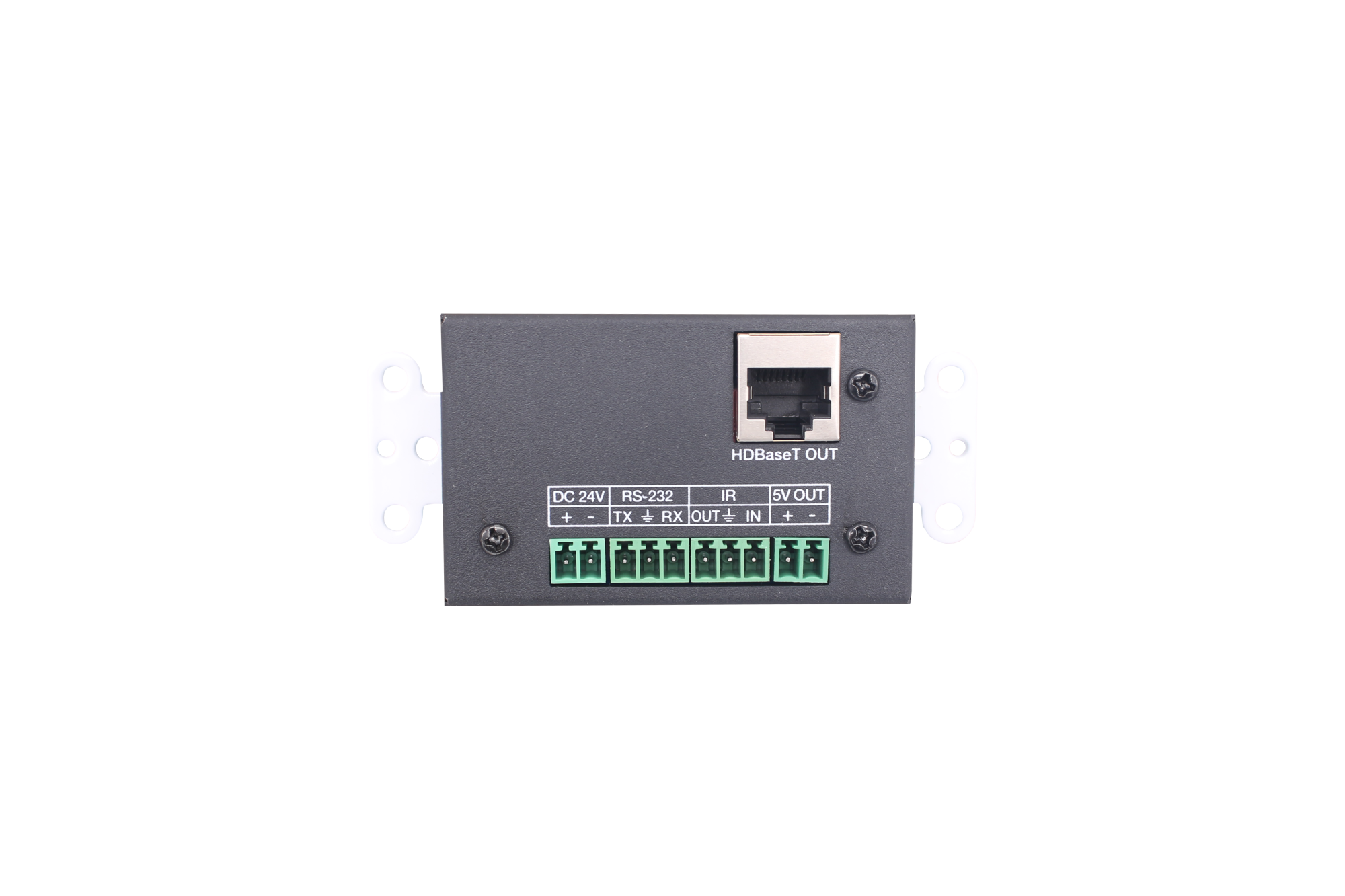

1x IR INPUT [Phoenix jack] 1x RS-232 [Phoenix jack] Outputs: 1x HDBaseT Out [RJ45] 1x IR OUTPUT [Phoenix jack] 1x RS-232 [Phoenix jack] |
| Mechanical | |
| Housing | Plastic-Front Panel, Metal-Rear Case |
| Color | White-Front Panel, Black-Rear Case |
| Dimensions | 103.5mm [W] x 46mm [D] x 30mm [H] |
| Weight | 163g |
| Power Supply | Input: AC100 – 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 9W (Max) |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
