Description

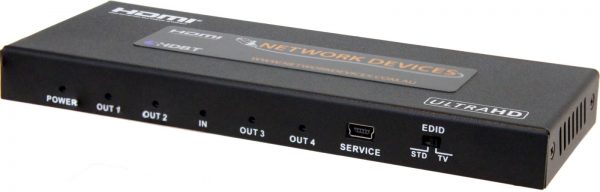

ND-HDMI-DA4K-14
The 1 by 4 HDMI 6G Splitter is an advanced solution for splitting a HDMI signal to four HDMI displays. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz(YUV4:4:4) and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss.
HDMI 2.0a, HDCP 2.2 compliant
Supports High Definition resolutions up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4/YCBCR 4:2:2
Supports 3D frame sequential video format up to 4K2K@30Hz
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
HDMI input supports ‘Standard’ mode and ‘TV’ mode EDID settings
Compact design for an easy and flexible installation
| Technical | |
| HDMI Compliance | HDMI 2.0a |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolutions | up to 4K2K@60Hz(4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| Audio Formats | PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| ESD Protection | Human body model ’??? ¶ôÇñ8kV (air-gap discharge) & ¶ôÇñ4kV (contact discharge) |
| Connections | |
| Inputs | 4x HDMI Type A [19-pin female] 1x 3.5mm Stereo Mini-jack [RS-232] 1x 3.5mm Stereo Mini-jack [Infrared Receiver] |
| Outputs | 1x HDMI Type A [19-pin female] 1x Stereo Audio Out with Toslink [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Dimensions | 180mm [W] x 85mm [D] x 11.6mm [H] |
| Net Weight | 300g |
| Power Supply | Input: AC100 – 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 2.5W |
| Operation Temperature | 32 – 104 F / 0 – 40 C |
Storage temperature |
-4 – 140 F / -20 – 60 C |
| Relative Humidity | 20 – 90% RH (no condensation) |
