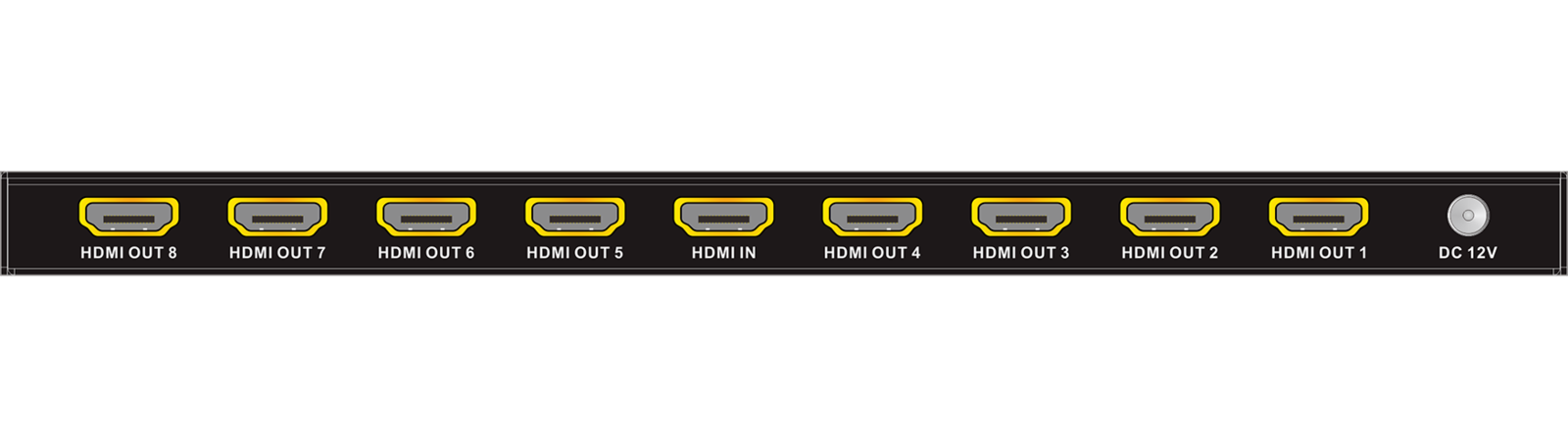

The 1 by 8 HDMI 6G Splitter is an advanced solution for splitting a HDMI signal to eight HDMI displays. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz(YUV4:4:4) and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss.
HDMI 2.0a, HDCP 2.2 compliant
Supports High Definition resolutions up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4/YCBCR 4:2:2
Supports 3D frame sequential video format up to 4K2K@30Hz
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
HDMI input supports ‘Standard’ mode and ‘TV’ mode EDID settings
Compact design for an easy and flexible installation
