Description

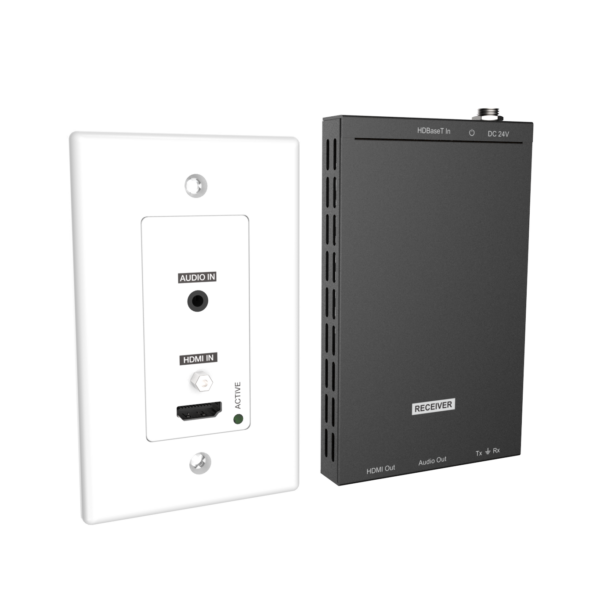

The Network Devices ND-WP-HA-70-KT HDBaseT extender set transmits HDMI, audio and
RS232 over single category 6 twisted pair cable. The ND-WP-HA-70-KT can transmit
4K resolutions up to 4K@60Hz, 4:2:0 up to 40m / 120’ and 1080P up to 70m / 230’. The
audio circuit is completely separate and is not dependent on the HDMI input source to
be active. The Network Devices ND-WP-HA-70-KT is HDMI 1.4b and HDCP 2.2 compliant and

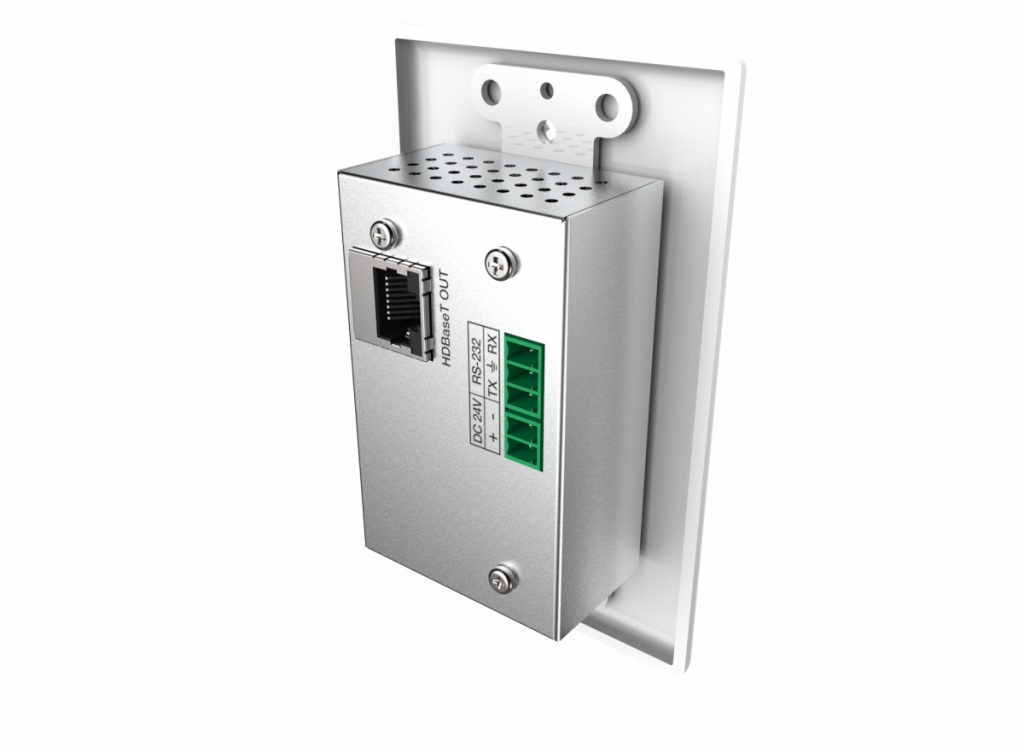

supports CEC pass through. The ND-WP-HA-70-KT HDBaseT receiver powers wall
plate transmitter via HDBaseT so there is no need for an external power supply for the
wall plate.
Features
☆ HDMI 1.4b, HDCP 2.2 compliant
☆ up to 4K2K@50/60Hz(4:2:0), 4K2K@30Hz 4:4:4, 1080p@120Hz
☆ up to 7.1 channels HD audio
☆ HDBaseT™ over a single CAT6/6a/7 cable up to 230ft/40m distance
for 4K2K@60Hz(4:2:0) or up to 230ft/70m distance for 1080p60Hz
☆ Independent analog audio from transmitter to receiver
☆ Two-way IR, RS-232
☆ Single-Gang US Decora Wall Plate
☆ 24V POC is supported
Package Contents
• ND-WP-HD Wall plate extender set
• Quick Install Guide
• (1) Decora cover plate
• (1) 3 Pin phoenix connector
• (1) 2 Pin phoenix connector
• (1) DC24V 1A power supply with US, UK, EU and AU power adapter plugs
• (2) Mounting ears with mounting screws
Specifications
| VIDEO | |
| Video Inputs (TX) | (1) HDMI |
| Video Input Connector (TX) | (1) HDMI type A |
| Input Video Signal | HDMI |
| Video Output (RX) | (1) HDMI |
| Video Output Connector (RX) | (1) HDMI type A |
| Output Video Signal | HDMI |
| Up to 3840 x 2160 @ 60Hz, 4:2:0, 8bit color depth | |
| Standards | Compliant with HDMI 1.4b & HDCP2.2 |
| AUDIO | |
| Supported output formats (HDMI) | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Supported output formats (Analog) | PCM 2.0 |
| Audio Input / Output | Stereo analog |
| Audio Input / Output Connector | (1) 3.5mm TRS audio jack |
| Audio Output Impedance | 70 Ohms |
| Frequency Response | 20Hz~20K Hz |
| CONTROL | |
| Control Port / Connector | (1) RS232 (TX) / 3 phoenix connector (1) RS232 (RX) / 3 phoenix connector |
| OTHER | |
| System Bandwidth | 10.2Gbps |
| 0C ~ +40C | |
| Storage Temperature | -20C ~ +60C |
| Humidity | 20% ~ 90% |
| Power Supply | Input:100V~240V AC; Output: 24V DC 1A |
| Dimension (W*H*D) | TX:103.5mm * 30mm * 46mm / 4” * .1.2” * 1.8” RX:124mm * 16mm * 75mm / 4.9” * .6” * 2.9” |
| Weight | TX:163g / .36 lbs RX:200g / .44 lbs |
| Warranty | 2 years |
| CE, FCC, |
Package Contents
• 1× 4K HDMI Wall Plate Transmitter
• 1× HDBaseT Receiver
• 1× Phoenix connector (3 pins)
• 1× Phoenix connector (2 pins)
• 1× 24V/1A power adapter
• 1× Cover plate
• 2× Rack ears
• 1× User Manual
