Single Gang HDMI, Audio, USB extender over 70m CAT5/6 with RX

Introduction

This is a Single Gang HDMI wall plate kit which can transmit HDMI signal over single CAT6/6a/7 to the distance up to 40m for 4K2K@50/60Hz(4:2:0) and 4K30Hz(4:4:4), or 1080P up to 70m. It also supports one independent analog audio, one-way RS232 signal pass-through with HDMI signal and USB unidirectional signal transmission function. This wall plate kit is an ideal solution for class-room and meeting room.

Features and Benefits

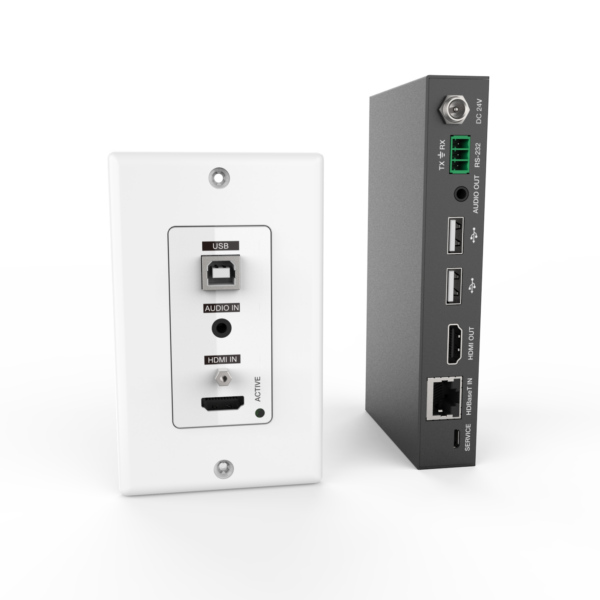

Complete set includes Wall plate TX, RX, Power supply, cover plate
Extend HDMI up to 4K, USB2.0, & Analog Audio signals up to 70 meters. HDCP2.2 Compliant
Extends RS232 & 1 way PoC from RX to wall plate TX
HDMI, audio, USB 2.0 high-speed extender set
Supports video up to 4K2K@30Hz (4:4:4), 4K2K@60Hz (4:2:0) 10.2G
Pass-through 3.5mm analog audio passes audio independent of HDMI port
Extend USB 2.0 high speed up to 190Mbps
Receiver features HDMI output, 3.5mm audio output, and 2 USB-A ports
Supports HDCP 2.2 and HDCP 1.4 compliant
Supports all HDMI audio formats
Single cable 40m for 4K / 70m for 1080P
RS232 & CEC pass-through
Dedicated 3.5mm audio independent from the HDMI signal

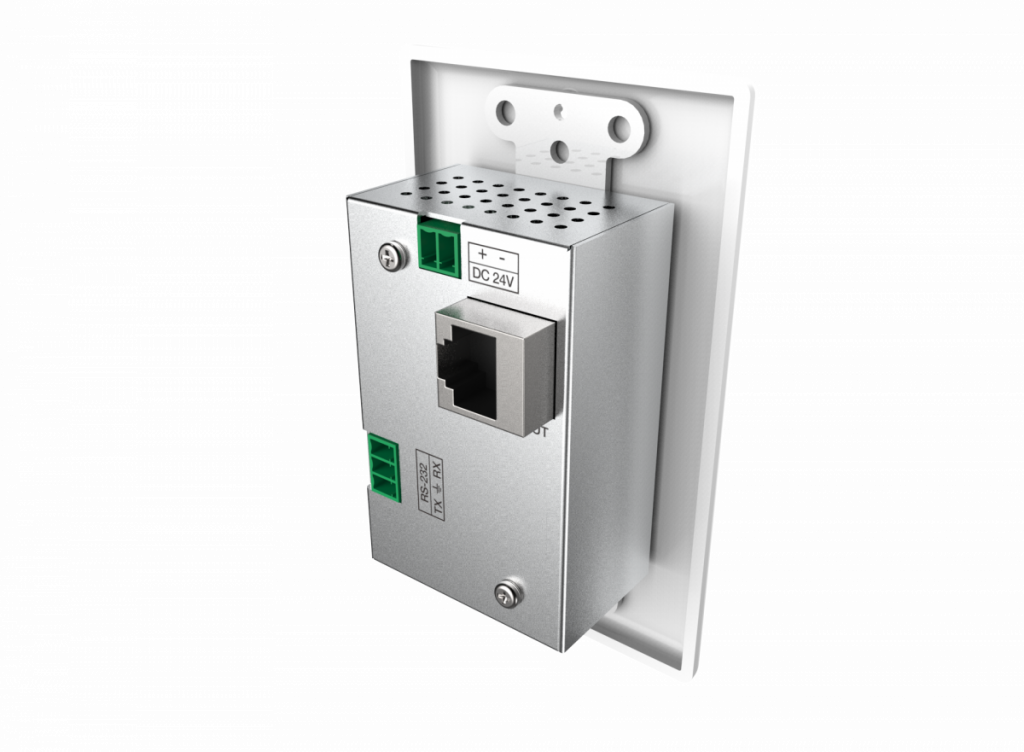

Remote power from receiver to wall plate transmitter

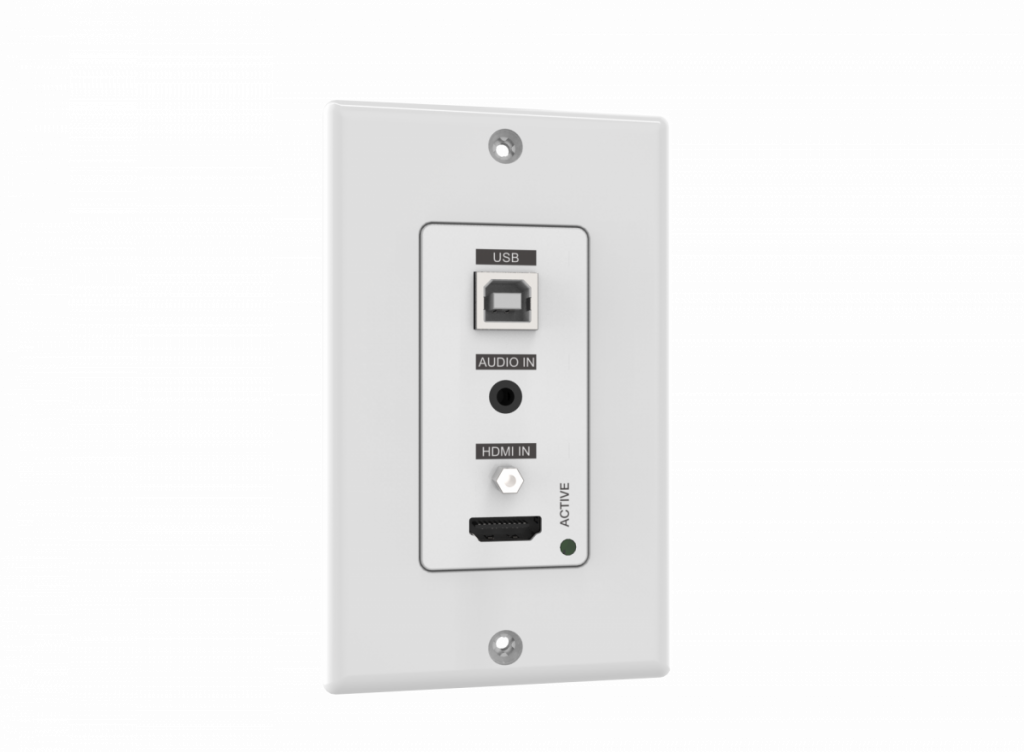

TX is standard US 1-gang decorator format
Applications
Extend HDMI source, USB2.0 high speed, and audio source at the same time or independently
Extension of HDMI, 3.5mm audio, USB2.0 high-speed signals
Education, commercial video, residential
