Single Gang USBC / HDMI USB Auto-Switch wall plate, Includes receiver.

Features

• HDMI and USB-C inputs.
• Automatic and manual input signal selection.
• USB-C charging input with loop-through port.
• Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a.
• Supports up to 4K@60Hz 4:4:4 resolution with 18Gbps bandwidth.
• Extends video transmission up to 70m for 1080p or 40m for 4K via a single CAT6/6a/7 cable.
• Includes USB 2.0 extension with the receiver.
• Supports PoE from receiver to transmitter.

SKU: ND-18G-WP-HUC-70M-KT

Description

Description

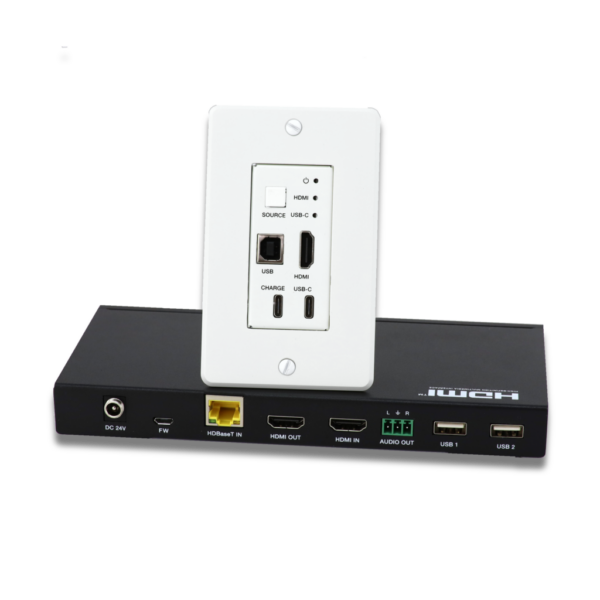

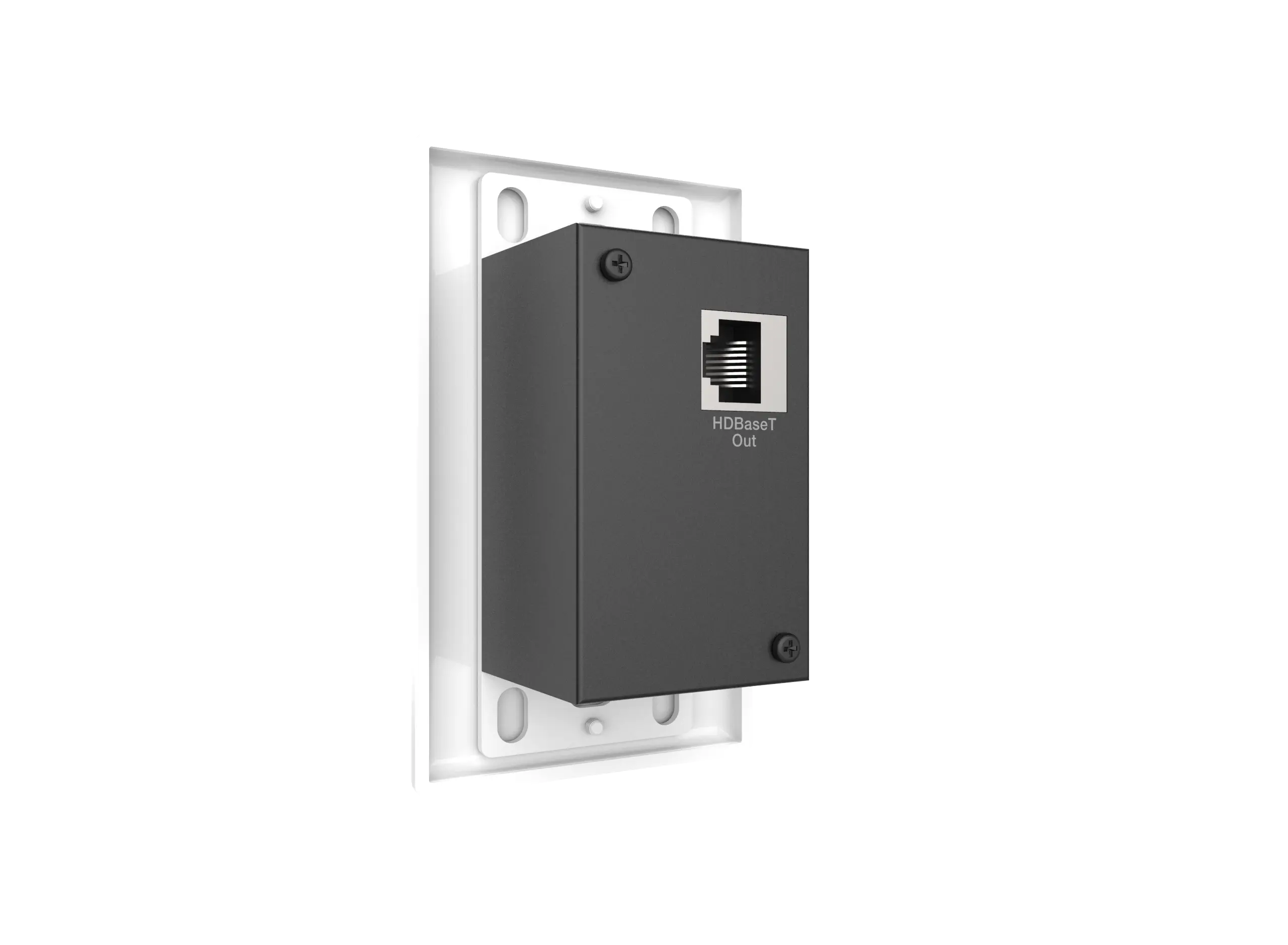

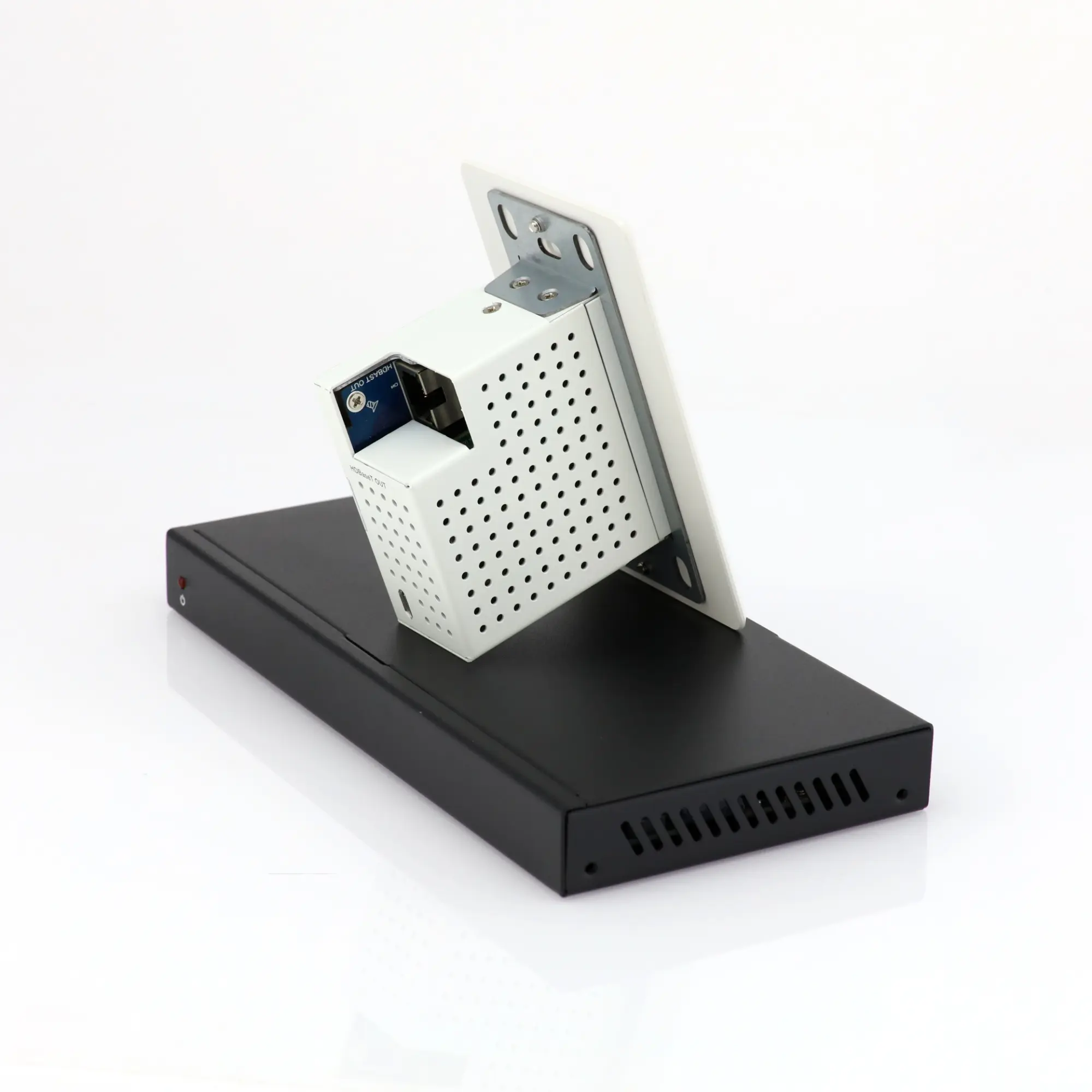

This wall plate is a 2×1 switcher and HDBaseT transmitter featuring HDMI and USB-C inputs. It supports video resolutions up to 4K@60Hz 4:4:4. The input plate is remotely powered via PoE from the receiver or other HDBaseT-equipped devices.

ND-18G-WP-HUC-70M-KT Manual

Package Contents

  • 1× 18Gbps HDBaseT 70M with USB-C/HDMI & KVM Function Wall Plate Transmitter.
  • 1 ? 18Gbps HDMI over HDBaseT Extender (Receiver) with HDMI / HDBT input auto switch
  • 2 ? Mounting Ears
  • 2 ? 3-pin Phoenix connector
  • 1 ? 24V/1A Locking Power Adaptor
  • 1 ? User Manual

Description

This wall plate is a 2×1 switcher and HDBaseT transmitter featuring HDMI and USB-C inputs. It supports video resolutions up to 4K@60Hz 4:4:4. The input plate is remotely powered via PoE from the receiver or other HDBaseT-equipped devices.

ND-18G-WP-HUC-70M-KT Manual

Package Contents

  • 1× 18Gbps HDBaseT 70M with USB-C/HDMI & KVM Function Wall Plate Transmitter.
  • 1 ? 18Gbps HDMI over HDBaseT Extender (Receiver) with HDMI / HDBT input auto switch
  • 2 ? Mounting Ears
  • 2 ? 3-pin Phoenix connector
  • 1 ? 24V/1A Locking Power Adaptor
  • 1 ? User Manual

Additional information

Weight 1.5 kg
