The UC CAM 200 series cameras offer impressive picture quality in a smaller package. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.
Superb High-definition Image: UC-CAM-200 Series employs 1/2.9 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 30fps.
Various Optical Zoom Lens: UC-CAM-200 Series has 3X/10X optical zoom lens for options.
Leading Auto Focus Technology: Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
Low Noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
Multiple Control Interface: RS232, RS485; RS232 support daisy chain, convenient for installation on projects.
Multiple Control Protocols: Support VISCA, elco-D, Pelco-P and support auto-recognize protocol.
Low-power sleep function: Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode
IR Remote Control
Preset: Support up to 255 presets (10 presets by remote )
The UC CAM 400 series cameras are fully featured and offer superior performance with multiple interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. They support H.264/H.265 encoding which makes motion video more fluent and clear under low bandwidth conditions.

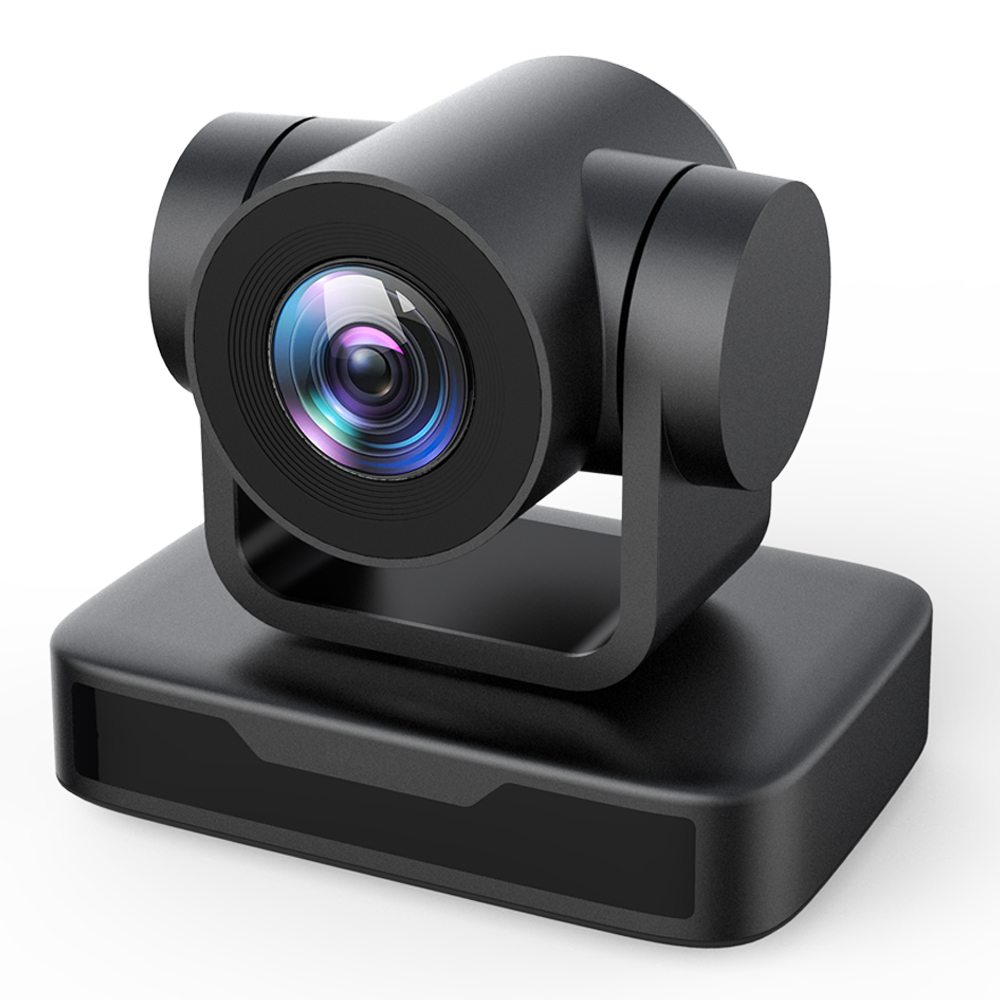

USB2 10x Optical Zoom FHD PTZ Conference Camera
$515.00 ex GST
The UC CAM 200 series cameras offer impressive picture quality in a smaller package. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.
Description
Key Features
Model
Number
UC-CAM-203
UC-CAM-210
Camera
Parameter
Sensor
1/2.9 Inch High
Quality CMOS Sensor
Effective
Pixels
2.07MP, 16:9
Video
Format
1920×1080P@30 fps/25fps; 1280×720P@30fps/25fps; 1024×576P@30fps/25fps;
960×540P@30fps/25fps;
800×448P@30fps/25fps;
640×360P@30fps/25fps;
320×176P@30fps/25fps
Optical
Lens
3X Optical Lens
f=3.35mm~10.05mm
10X Optical Lens
f=4.34mm~41.66mm
View
Angle
34.1°~110°
8.8°~
68.8°
Iris
F1.7~3.0
F1.85 – F2.43
Digital
Zoom
10X
Low
Illumination
0.5Lux(F1.8, AGC ON)
DNR
2D﹠3DDNR
White
Balance
Auto / Manual/ One Push//3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus
Auto / Manual/ One Push/
Electronic
Shutter
Auto / Manual/
BLC
On/Off
WDR
OFF/ Dynamic Level Adjustment
Video
Adjustment
Brightness, Color, Saturation, Contrast,
Sharpness, B/W mode, Gamma curve
SNR
>55dB
Interface
and Protocol
Video
Output
USB2.0
Video
Stream
Dual Stream
Video
Compression
H.265, H.264, MJPG

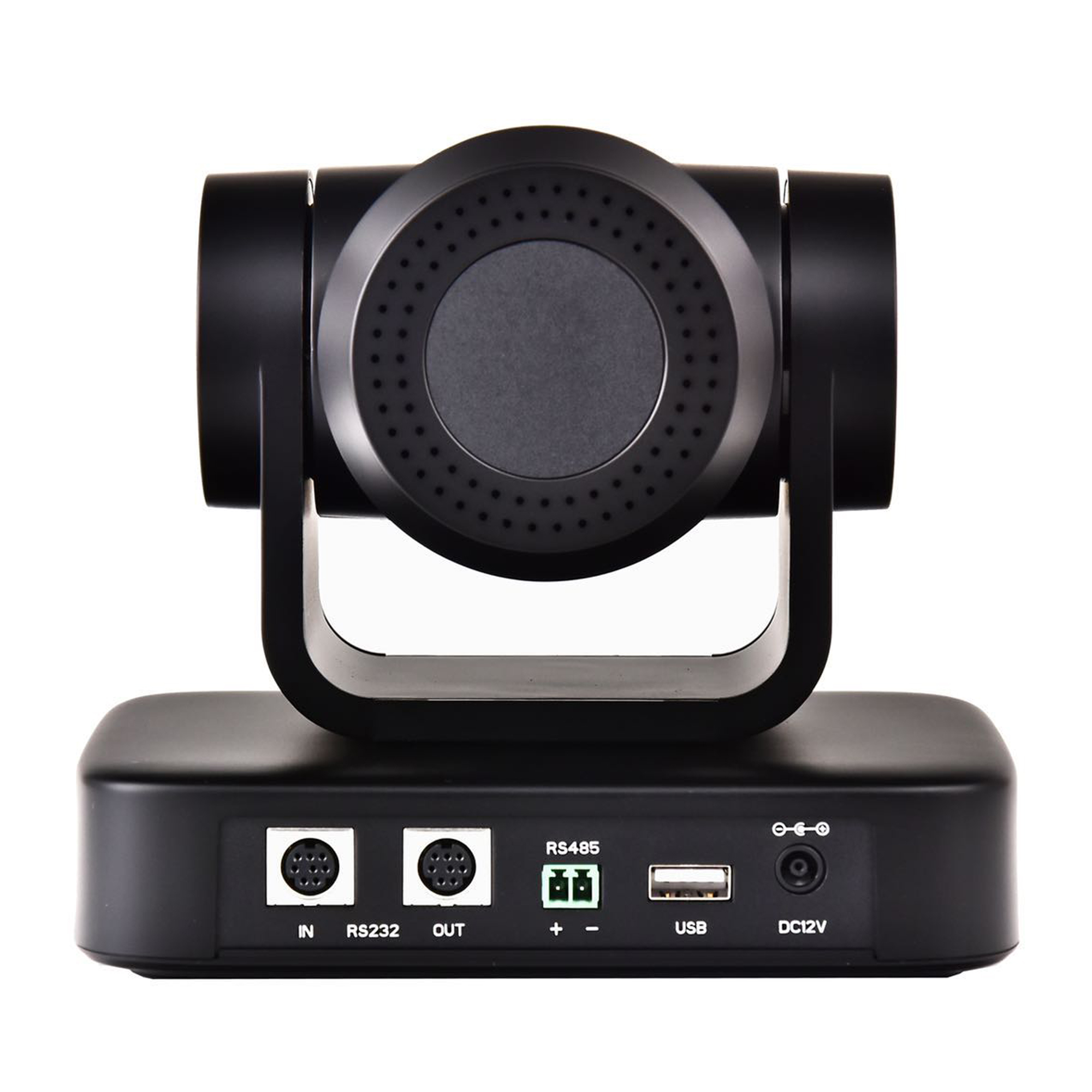

Control
Port
RS232(Circuit), RS485
Control
Protocol
Protocol: VISCA/Pelco-D/Pelco-P
Power
Supply
HEC3800 Outlet (DC12V)
Power
Adapter
Input AC110V-AC220V, output DC12V/1.5A
Power
Input
DC12V±10%, 1A(Max)
Power
Consumption
12W(Max)
USB
characteristics
Support operating
system
Windows 7,Windows8,Windows10,Mac OSX, Linux
Video
Compression
H.265, H.264, MJPG
USB communication
protocol
UVC
PTZ
Parameter
Pan/Tile
Rotation
-170°~+170°, -30°~+30°
Pan/Tile
Controller Speed
0.1~60°/Second, 0.1~30°/Second
Preset Speed
Pan:60°/Second, Tilt: 30°/Second
Preset Numbers
255 Points Preset (10 points By Remote
Controller)
Other
Parameter
Working
Voltage
12V
Working
current
0.25A(max)
Power
Consumption
2.5W(max)
Additional information
3x, 10x
