This product extends HDMI and USB-C signals up to 150 metres at 1080p@60Hz, or up to 120 metres at 4K@60Hz (4:4:4), using a single CAT6/6A cable.

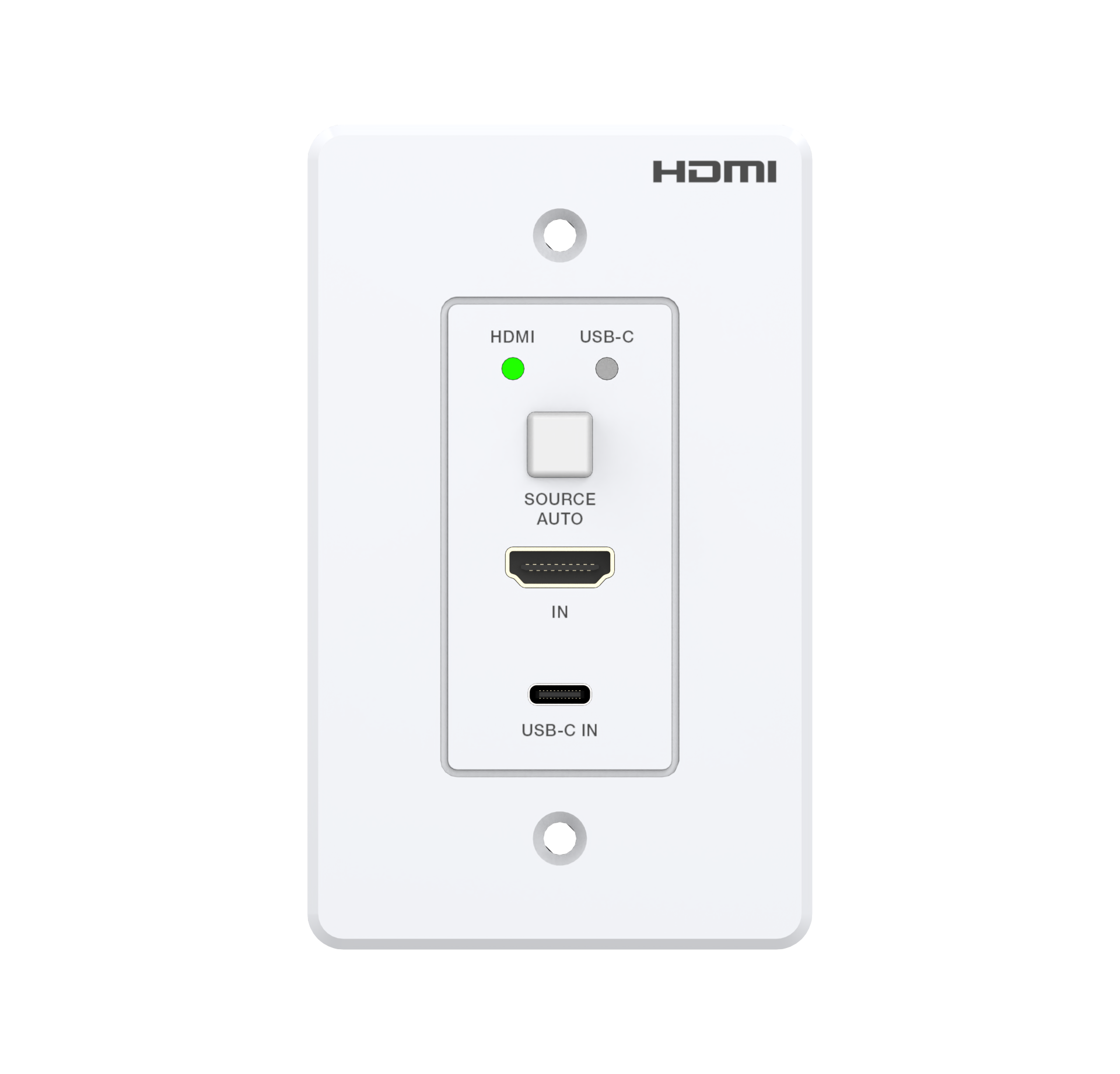

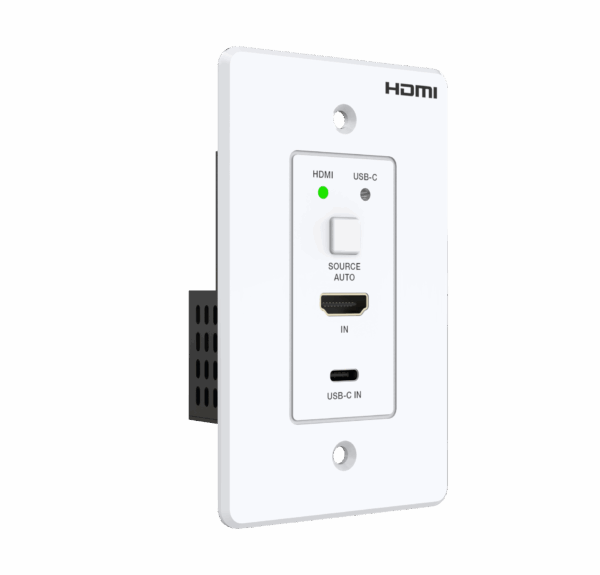

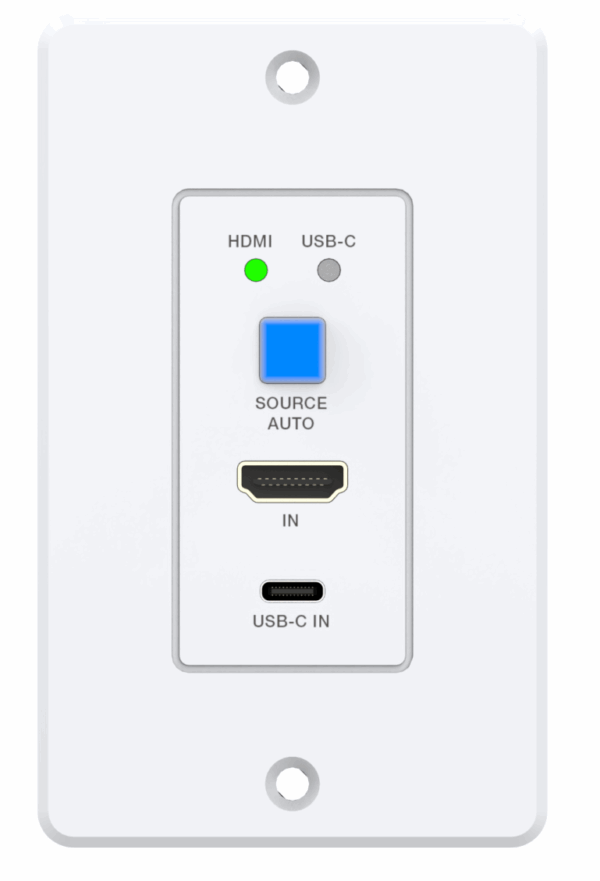

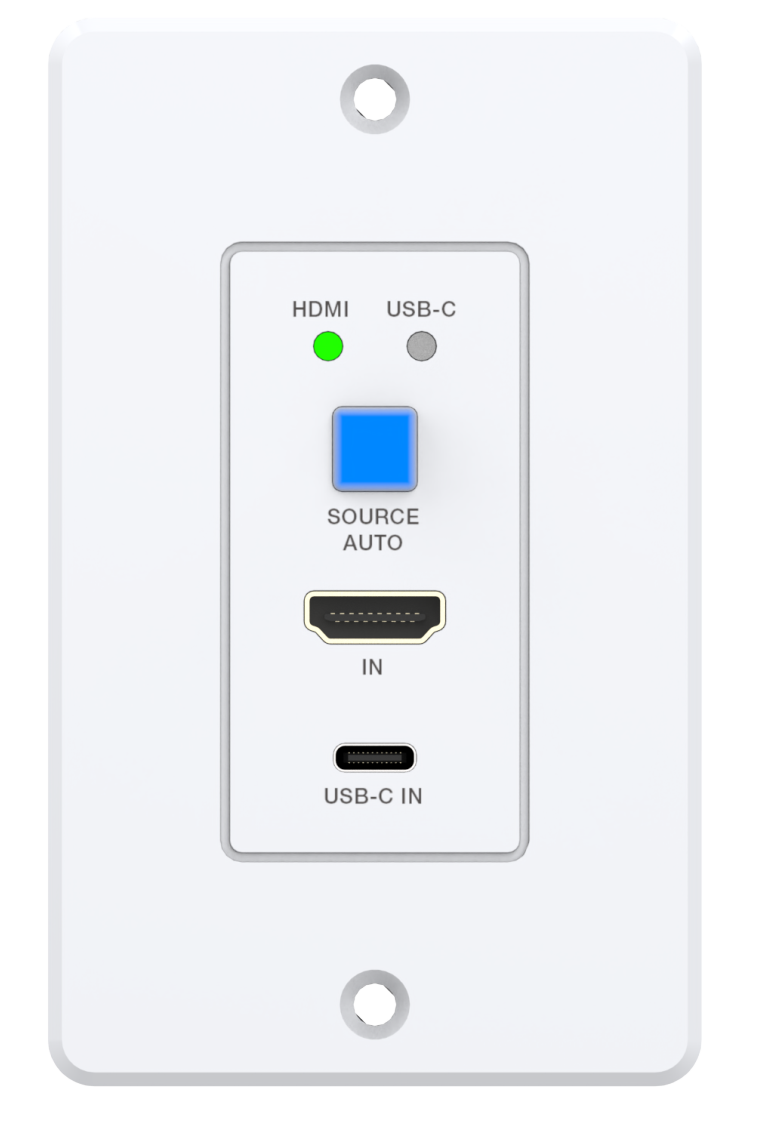

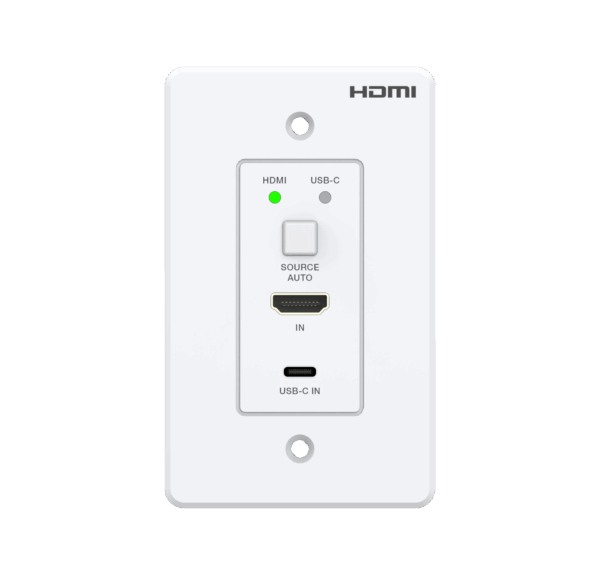

The wall-plate transmitter includes one HDMI input and one USB-C input, supporting both manual and automatic input switching.
The receiver provides one HDMI output and a 3.5mm audio output for audio de-embedding.

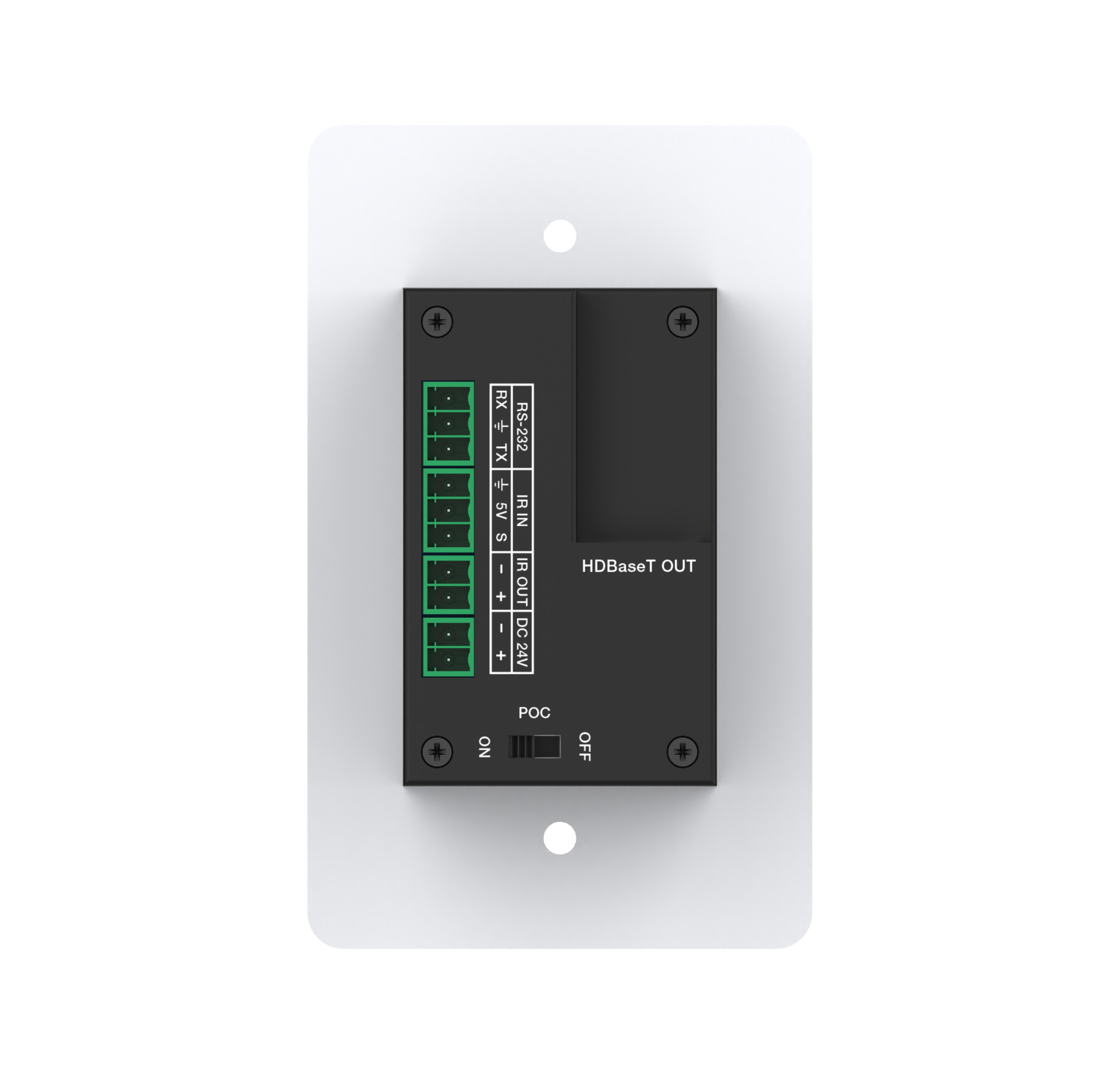

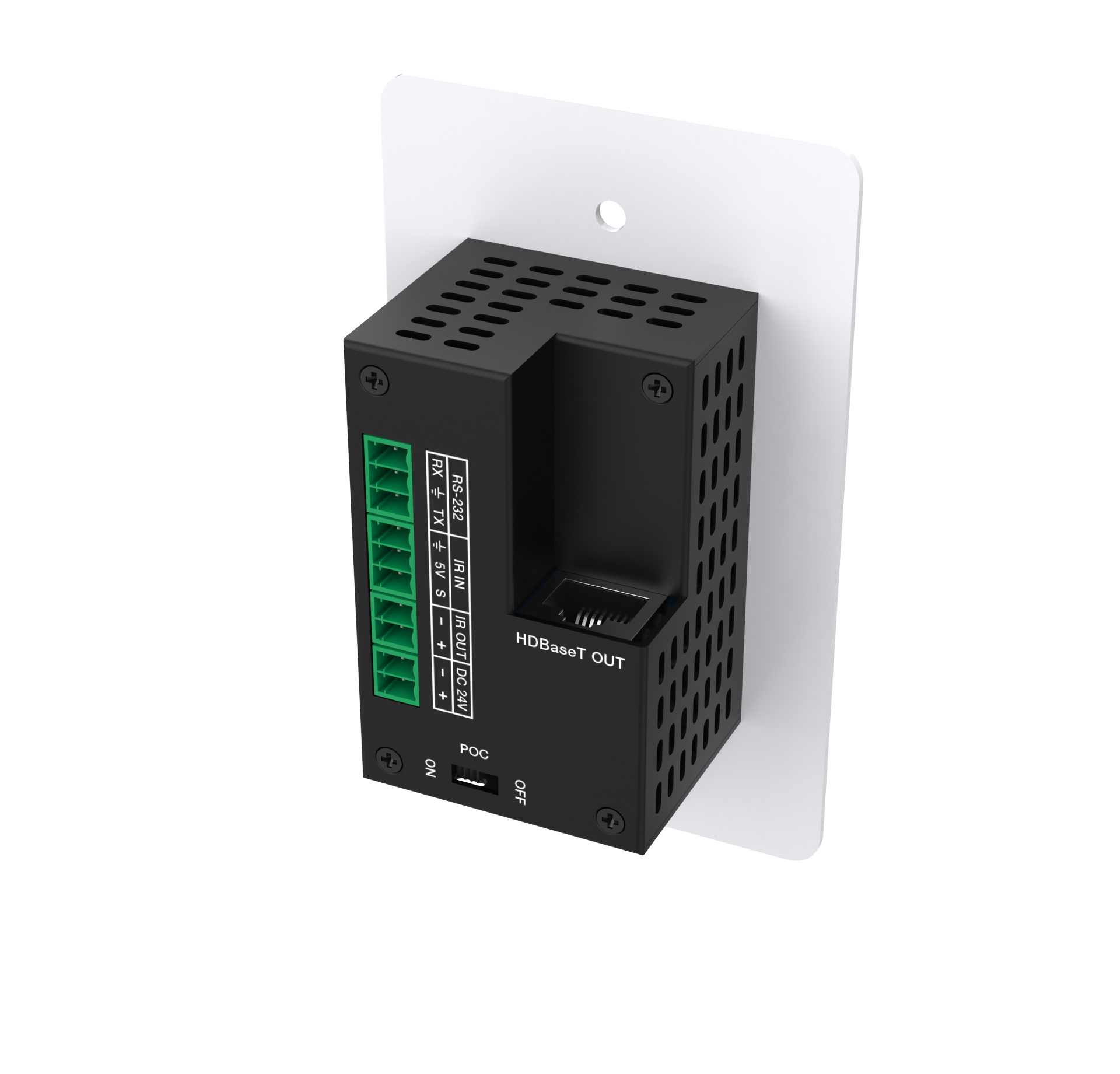

It supports bi-directional PoC, IR, and RS-232 signal transmission.
This versatile extender is ideal for use in presentations, video conferencing, multimedia classrooms, and other HDMI signal extension applications.
Package Contents
- 1 × 4K60 2×1 HDBaseT Extender (Transmitter)
- 1 × 18Gbps HDMI over HDBaseT Extender (Receiver)
- 1 × 24V/1A Multinational Power Supply
- 1 × IR Blaster Cable (1.5 m)
- 1 × IR Wideband Receiver Cable (1.5 m)
- 1 × 2-pin 3.5mm Phoenix Connector (Male)
- 2 × 3-pin 3.5mm Phoenix Connector (Male)
- 1 × 3-pin 3.81mm Phoenix Connector (Male)
- 2 × Mounting Ears
- 4 × Machine Screws (KM3×4)
- 1 × User Manual
