• HDCP 2.2 compliant
• UHD Video over 1Gb Network
• Up-Scaling and Down-Scaling
• Videowall Processing
• Support up to 4K60 4:4:4 input, 4K60 4:2:0 output
• Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• JEPG2000 main stream and standard H.265 codec auxiliary stream
• Transmit video, audio, infrared, USB2.0 KVM up tp 100m
• Supports unicast, multicast, video segmentation and TV wall function
• POE (Power over Ethernet) and Local Powering
• Supports: Video Matrix , One to One, One to Many

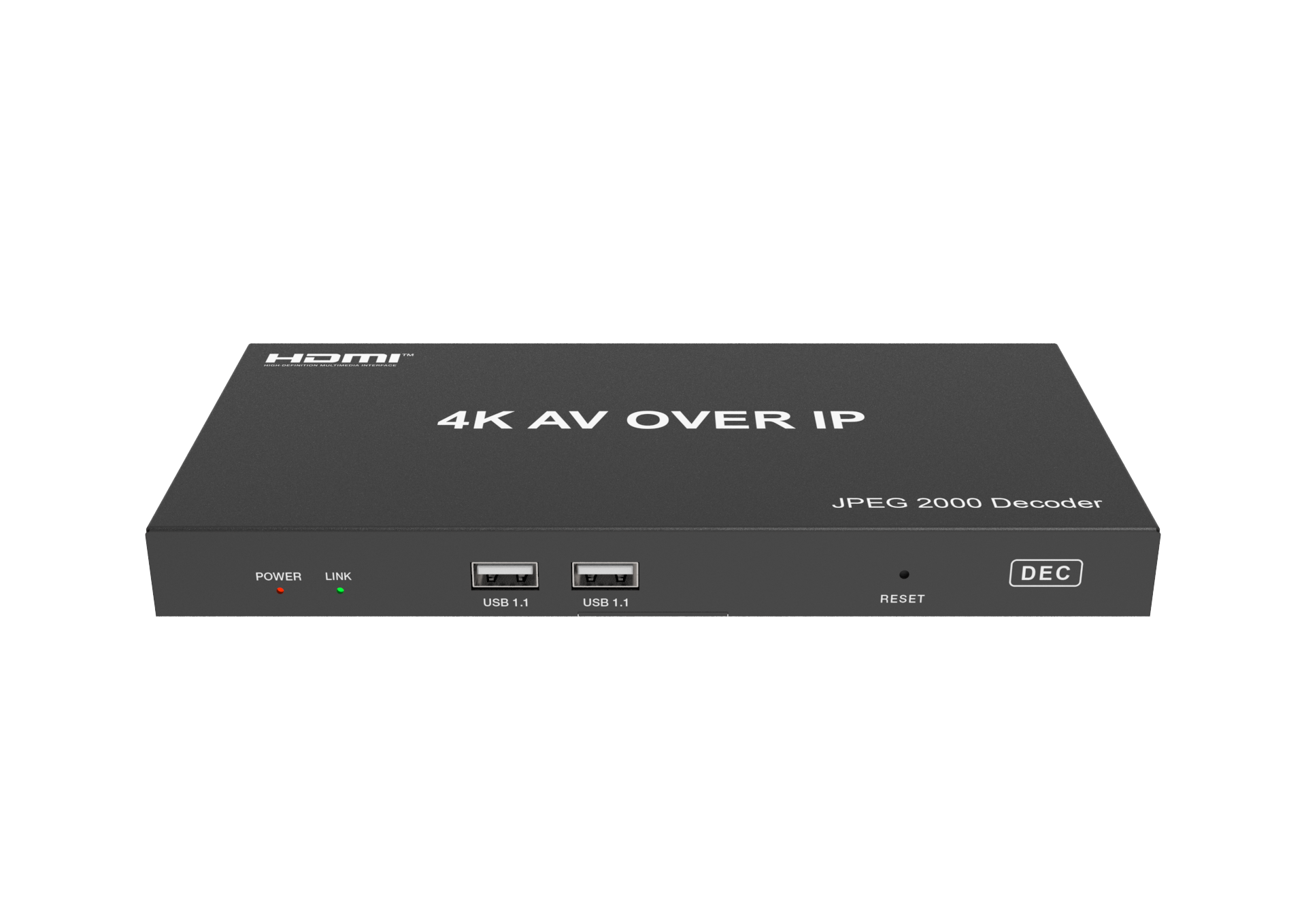

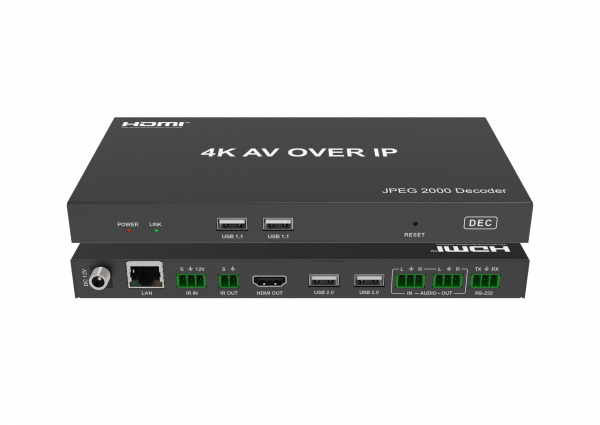

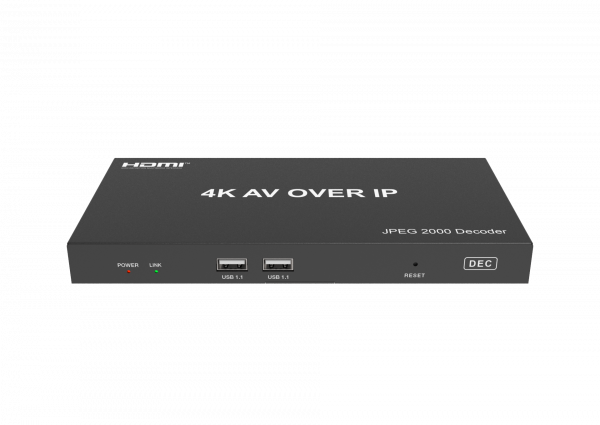

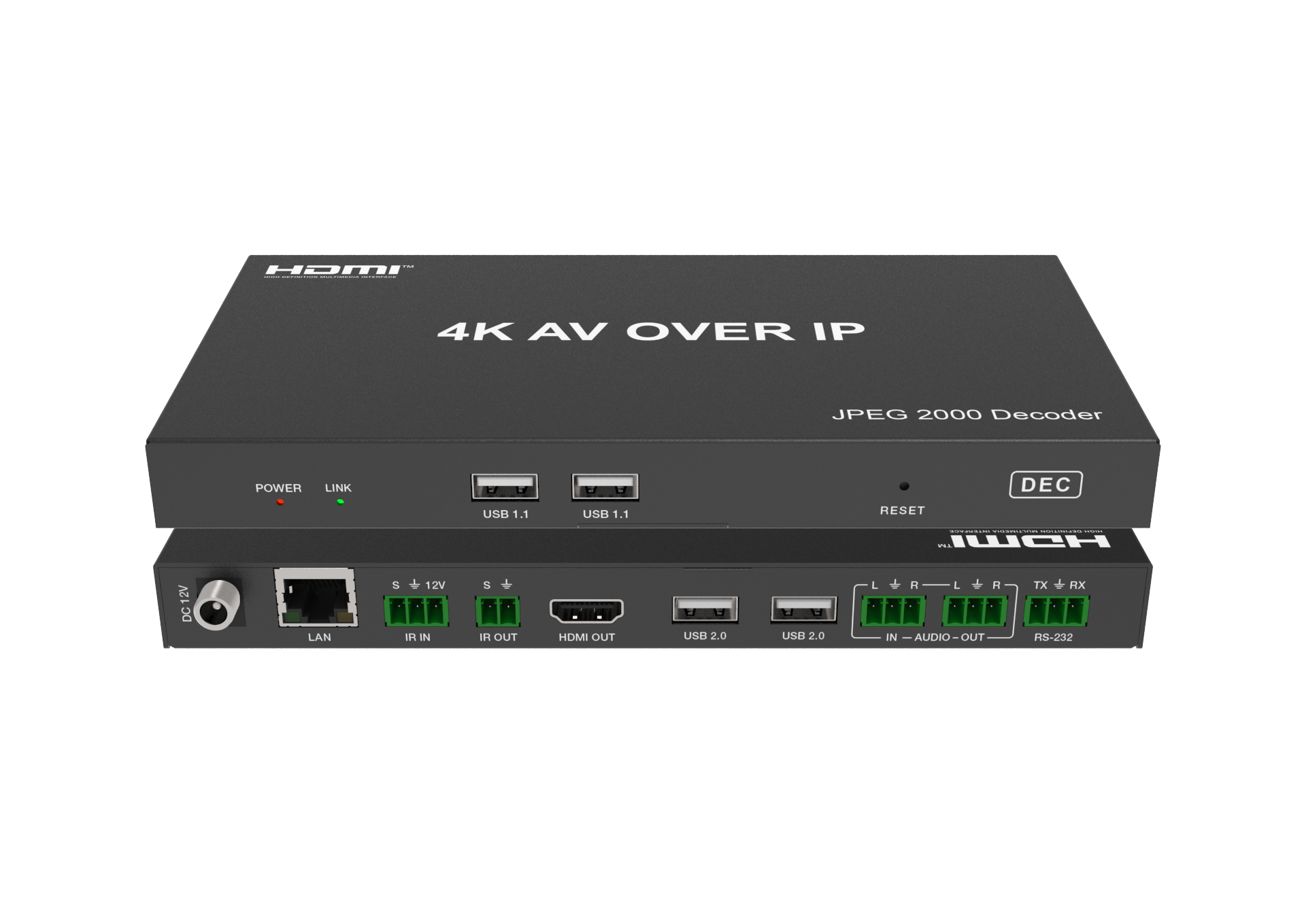

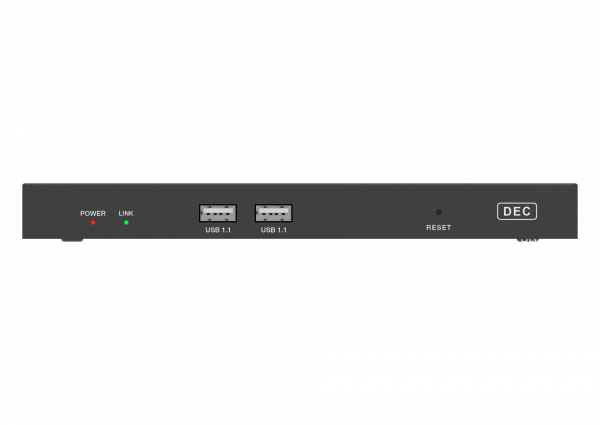

SKU: ND-100M-4K-IP-RX

Description

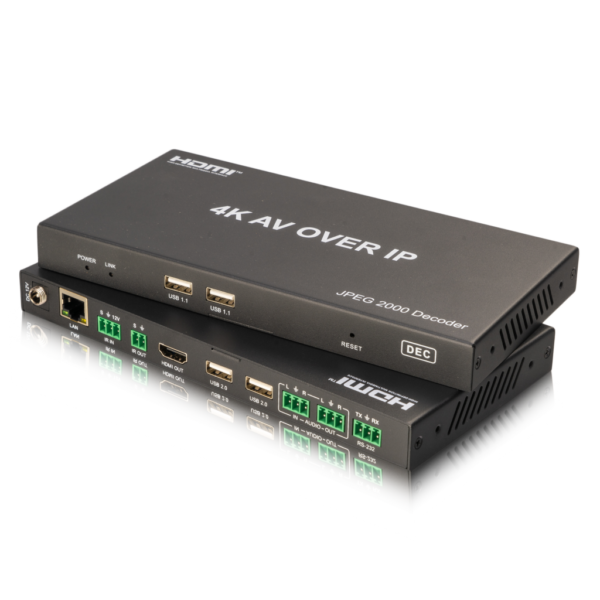

The ND-100M-4K-IP-RX employs visually lossless compression technology to distribute 4K60Hz video with HDCP2.2 content including IR, RS-232 & USB /KVM signals up to lengths of 100m over 1Gb network infrastructure. It features broadcast quality up-scaling and down-scaling and video wall functionality. The unit can be powered remotely via POE or locally using a 12v power supply.

Specifications

HDCP Compliant             HDCP 2.2
Video Bandwidth             10.2 Gbps (297MHz)
Video Resolution              480i ~1080p50/60Hz, 4Kx2K@24/30Hz, support 4k2k@60Hz input
Colour Depth                     8/10/12-bit (1080P60Hz) 8-bit (4K60Hz)
Colour Space                        RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
HDMI Audio Formats      LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection                  Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

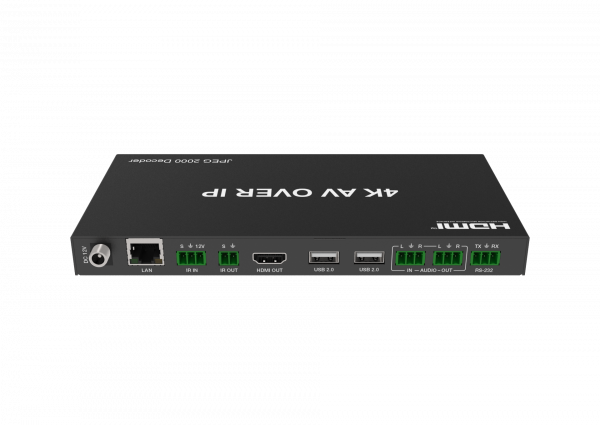

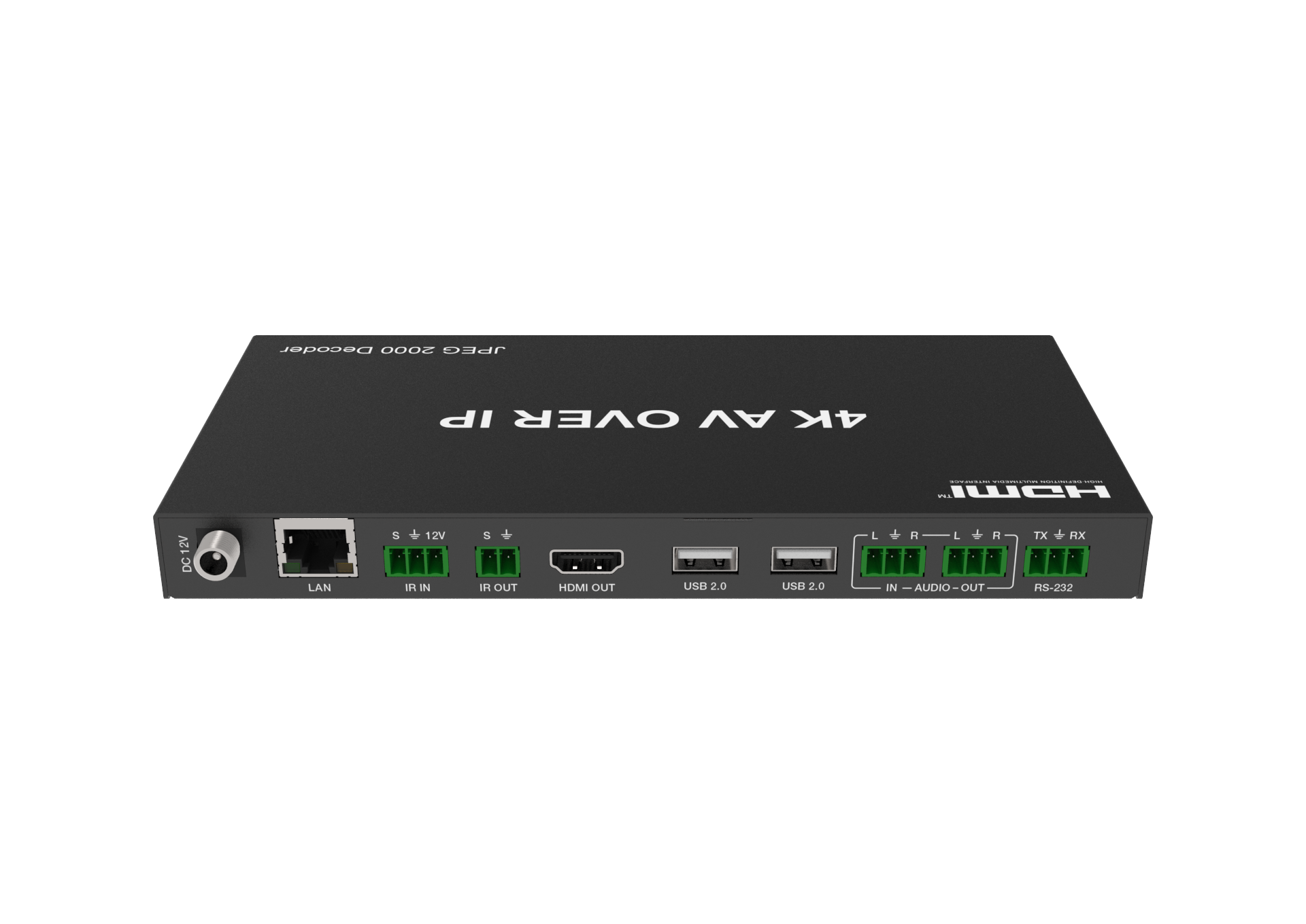

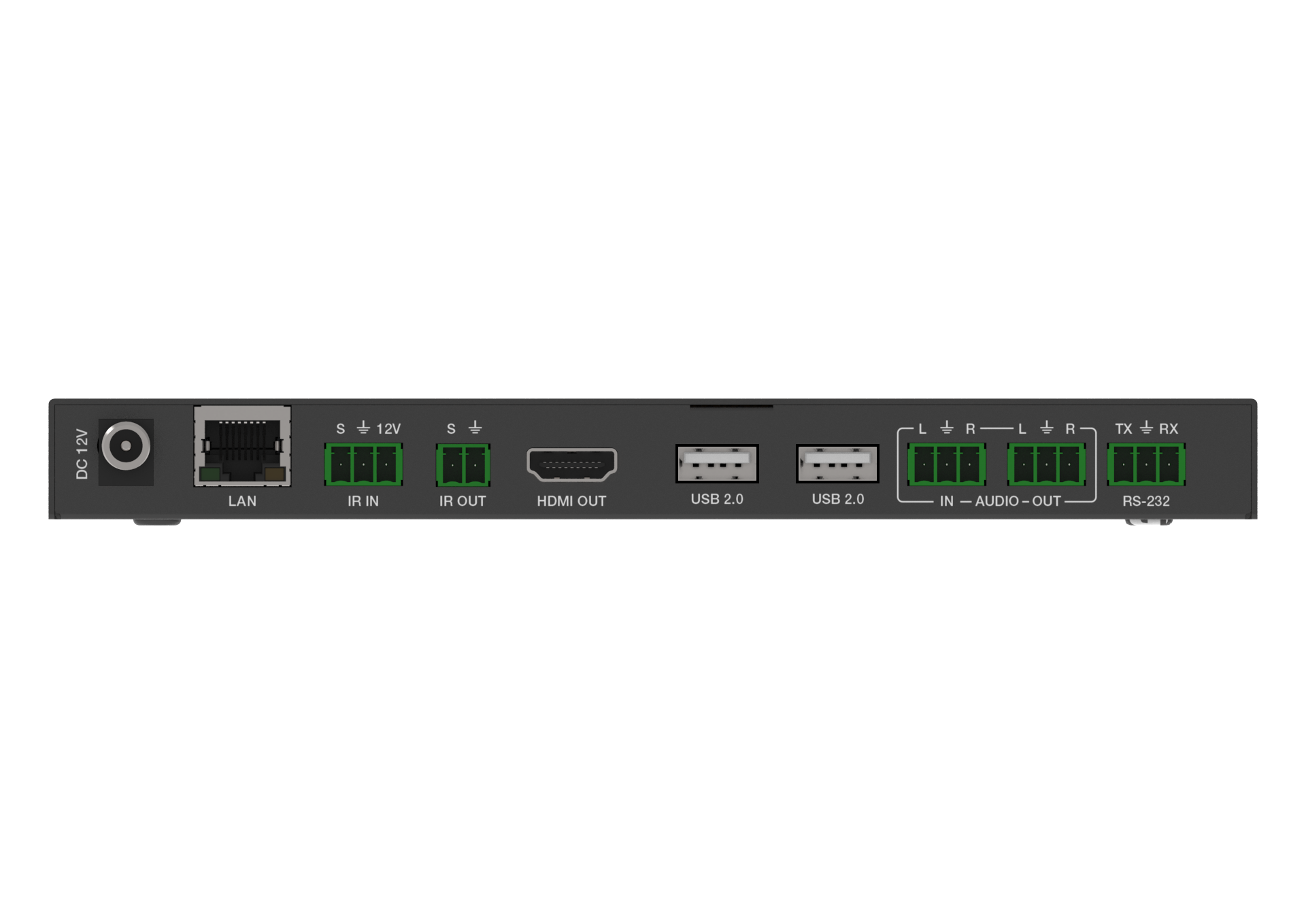

Input ports

1x HDMI Type A (19-pin female)
1x IR IN phoenix connector (3-pin female)
1x 12V 1A bolt power socket
1x RS232 phoenix connector (3-pin female)
2x USB DEVICE Type A (5-pin female)
1x AUDIO IN phoenix connector (3-pin female)

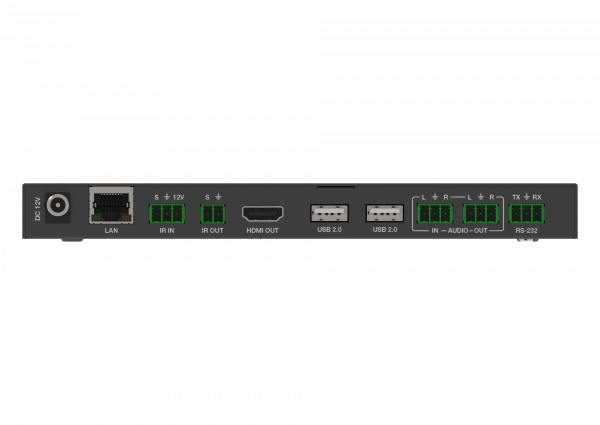

Output ports

1x HDMI Type A (19-pin female)
1x IR OUT phoenix connector (2-pin female)
1x AUDIO OUT phoenix connector (3-pin female)

Mechanical

Housing           Metal enclosure
Color                 Black
Dimensions     200mm [W] x 100mm [D] x 20mm [H]
Weight              TX:509g, RX:496g
Power Supply
                           Input: AC100 – 240V 50/60Hz,
                           Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption       TX: 9.8W, RX: 7W
Operating Temperature 0 – 40°C
Storage Temperature     -20 – 60°C
Relative Humidity             20 – 90% RH (no condensing)
Specifications subject to change without notice.

Package Contents

  • 1 x AV over IP Decoder
  • 1 x 12V/1A Power adapter
  • 1 x User Manual
  • 1 x 12V IR Receiver cable
  • 1 x 5V IR Receiver cable
  • 1 x 5V IR Blaster cable
  • 1 x 2-pin 3.81mm phoenix connector
  • 2 3-pin 3.81mm phoenix connector
