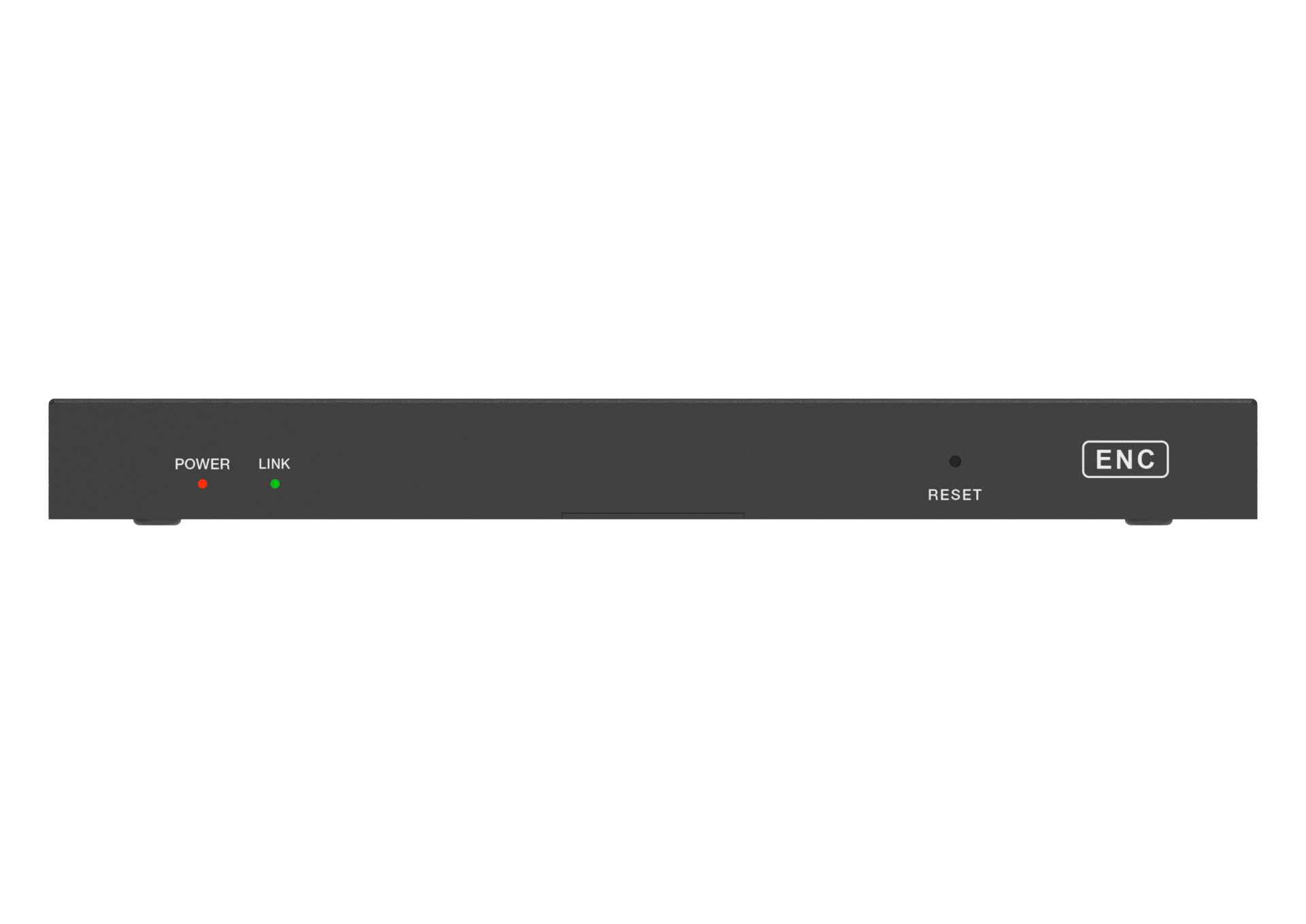

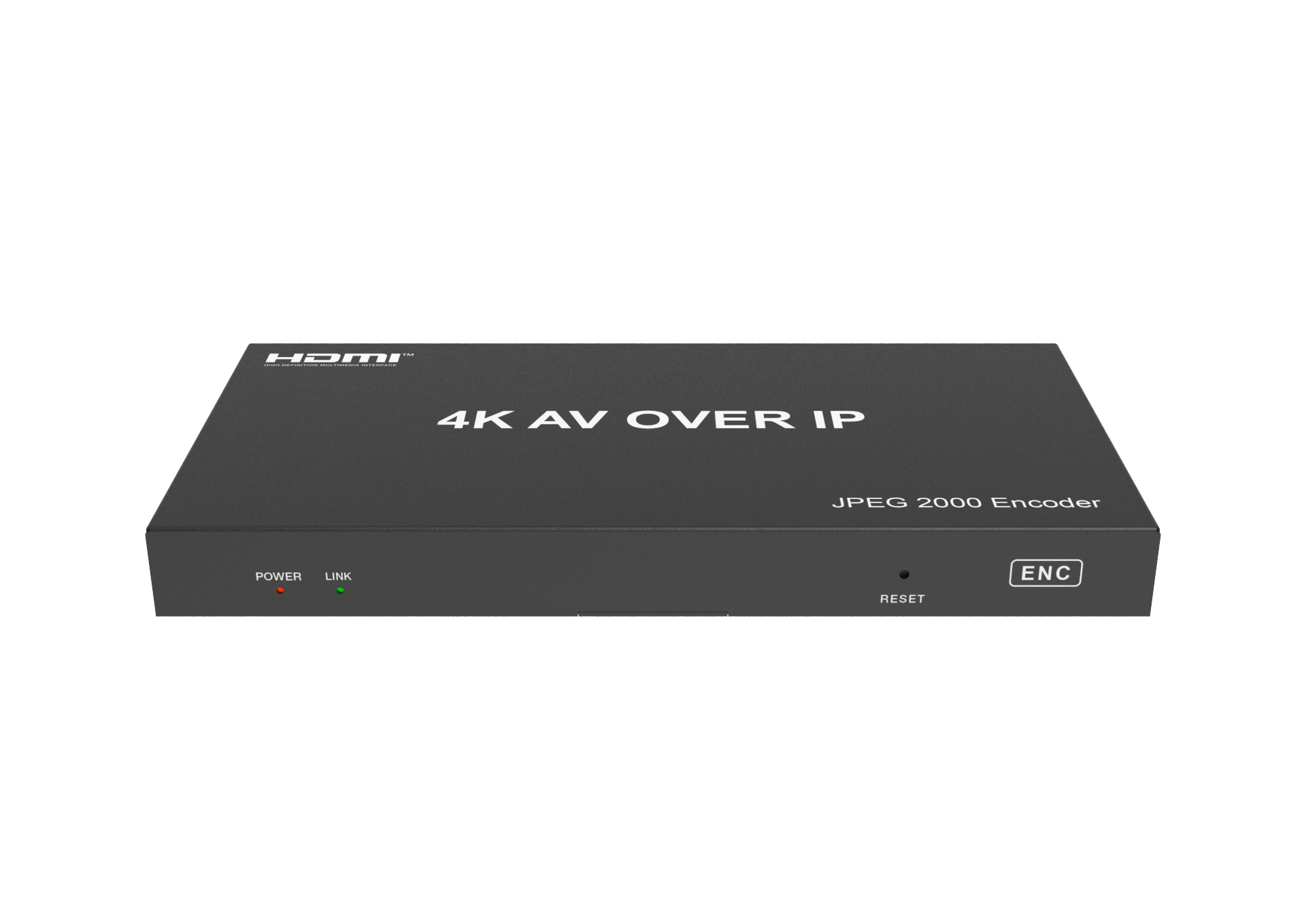

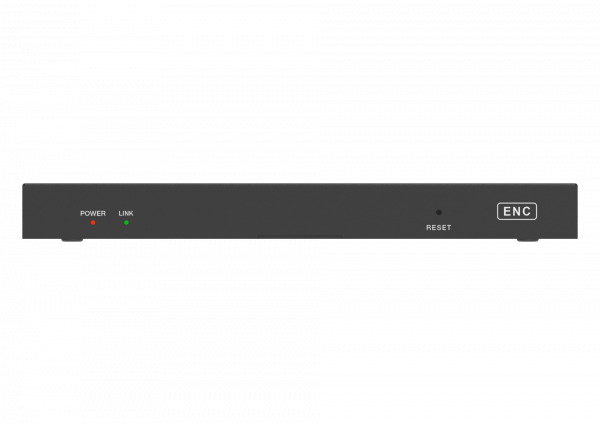

Description

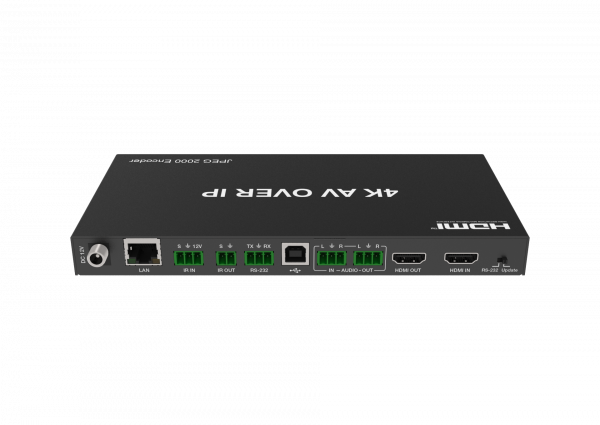

The ND-100M-4K-IP-TX employs visually lossless compression technology to distribute 4K60Hz video with HDCP2.2 content including IR, RS-232 & USB /KVM signals up to lengths of 100m over 1Gb network infrastructure. It features HDMI loop out and an auxiliary .H264/.H265 video encoding stream for live preview. The unit can be powered remotely via POE or locally using a 12v power supply.
Specifications
HDCP Compliant HDCP 2.2
Video Bandwidth 10.2 Gbps (297MHz)
Video Resolution 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, support 4k2k@60Hz input
Colour Depth 8/10/12-bit (1080P60Hz) 8-bit (4K60Hz)
Colour Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

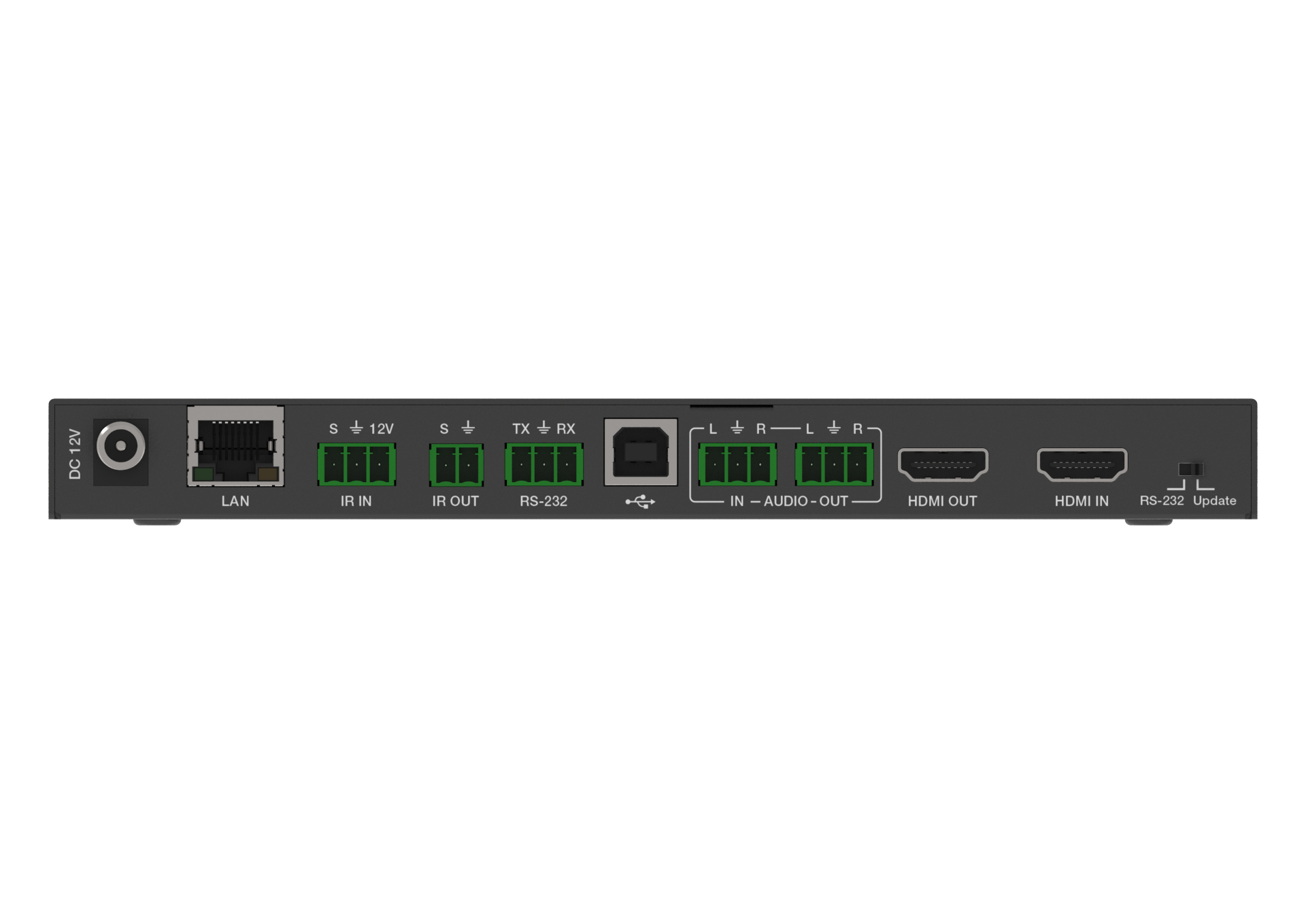

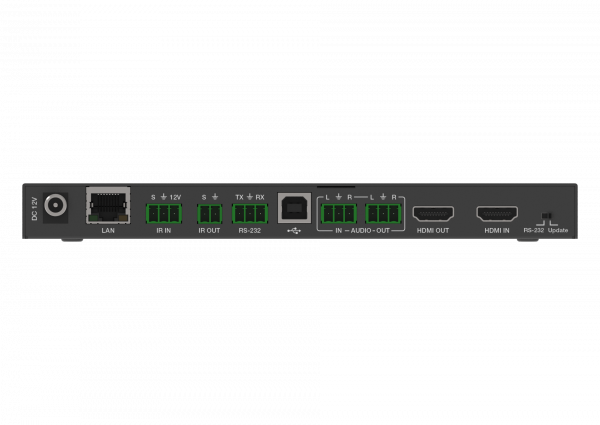

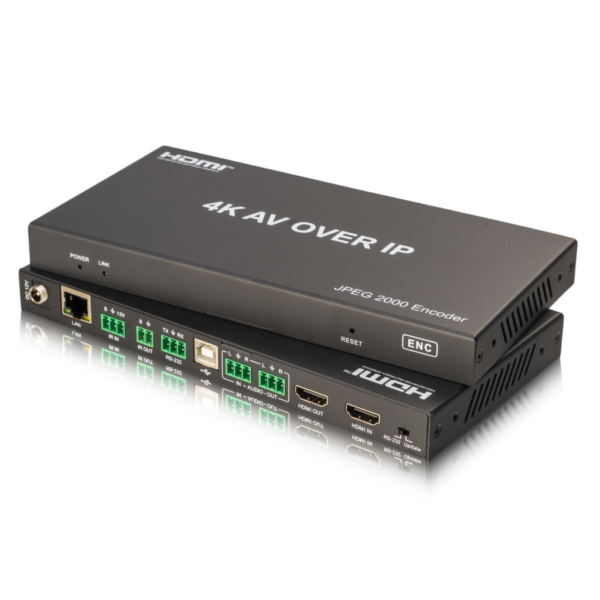

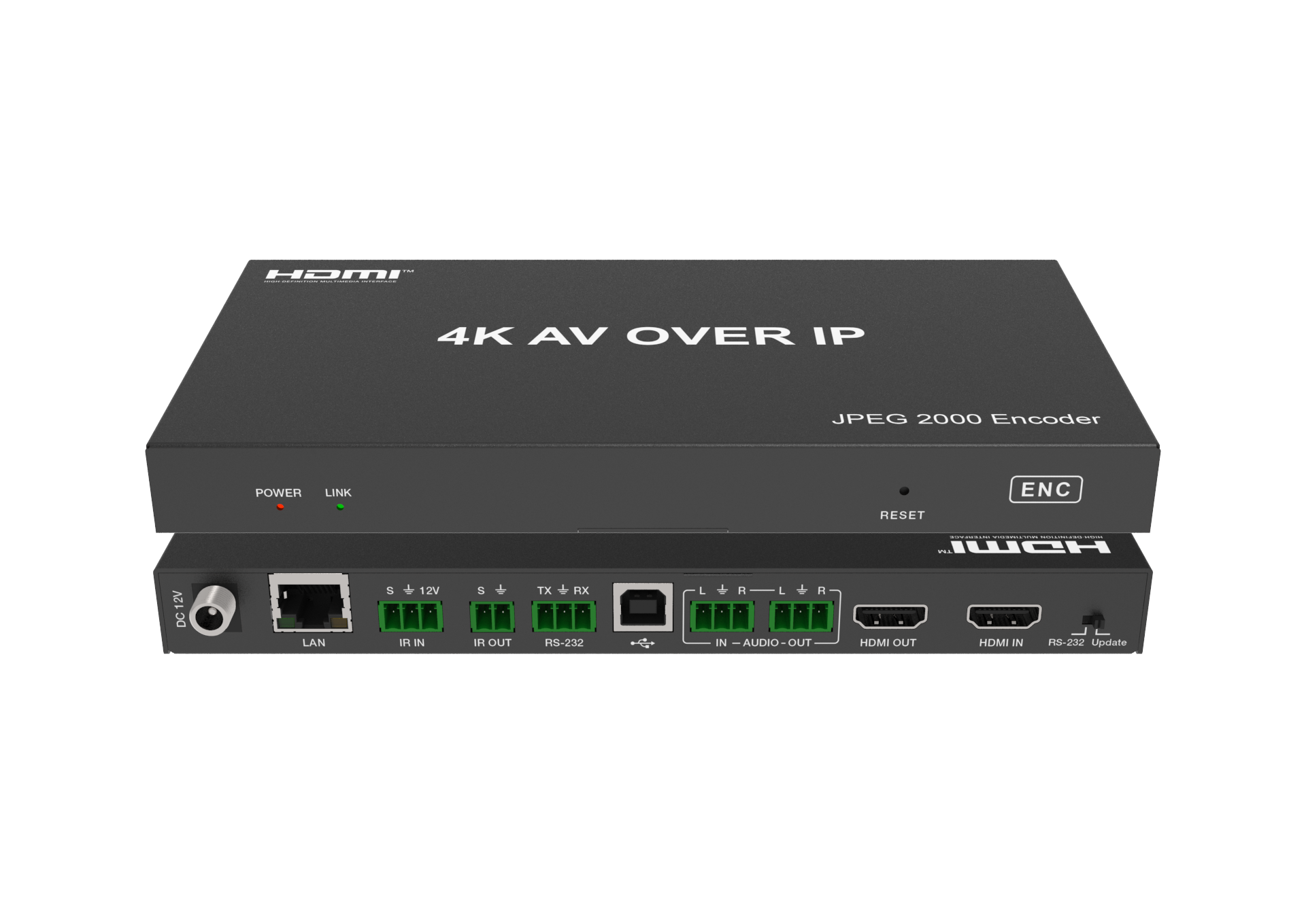

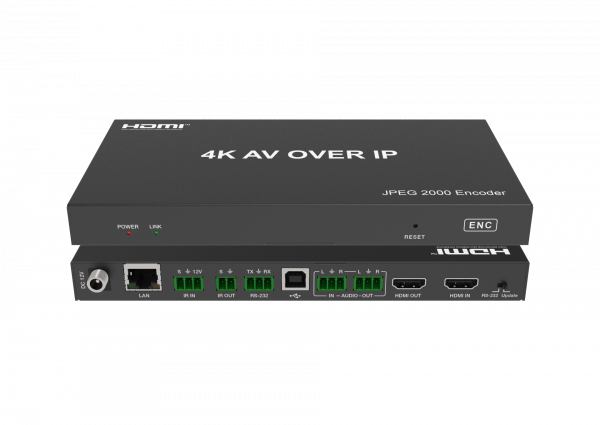

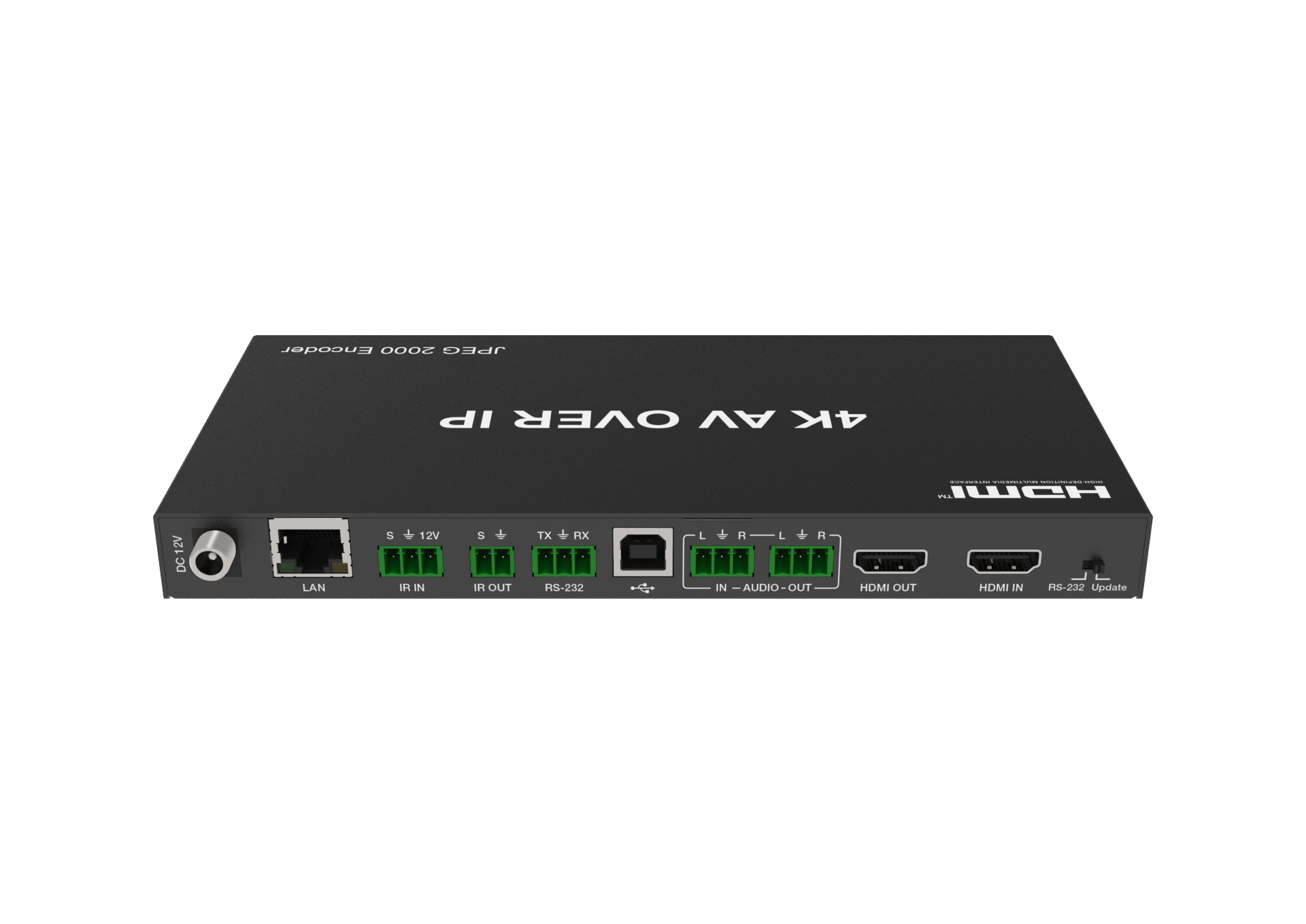

Input ports
1x HDMI Type A (19-pin female)
1x IR IN phoenix connector (3-pin female)
1x 12V 1A bolt power socket
1x RS232 phoenix connector (3-pin female)
1x USB HOST Type B (5-pin female)
1x AUDIO IN phoenix connector (3-pin female)
Output ports
1x HDMI Type A (19-pin female)
1x IR OUT phoenix connector (2-pin female)
1x AUDIO OUT phoenix connector (3-pin female)
Mechanical
Housing Metal enclosure
Color Black
Dimensions 200mm [W] x 100mm [D] x 20mm [H]
Weight TX:509g, RX:496g
Power Supply
Input: AC100 – 240V 50/60Hz,
Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption TX: 9.8W, RX: 7W
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Relative Humidity 20 – 90% RH (no condensing)
Specifications subject to change without notice.
Package Contents
• 1 x AV over IP Encoder
• 1 x 12V/1A Power adapter
• 1 x User Manual
• 1 x 12V IR Receiver cable
• 1 x 5V IR Receiver cable
• 1 x 5V IR Blaster cable
• 1 x 2-pin 3.81mm phoenix connector
• 2 3-pin 3.81mm phoenix connector
